What is the voltage when the duty cycle is 20% Determine the duty cycle that supplies 2.5 V, then find the correspondent

[answerhappygod]

What Is The Voltage When The Duty Cycle Is 20 Determine The Duty Cycle That Supplies 2 5 V Then Find The Correspondent 1 (540.62 KiB) Viewed 25 times

can you solve ?

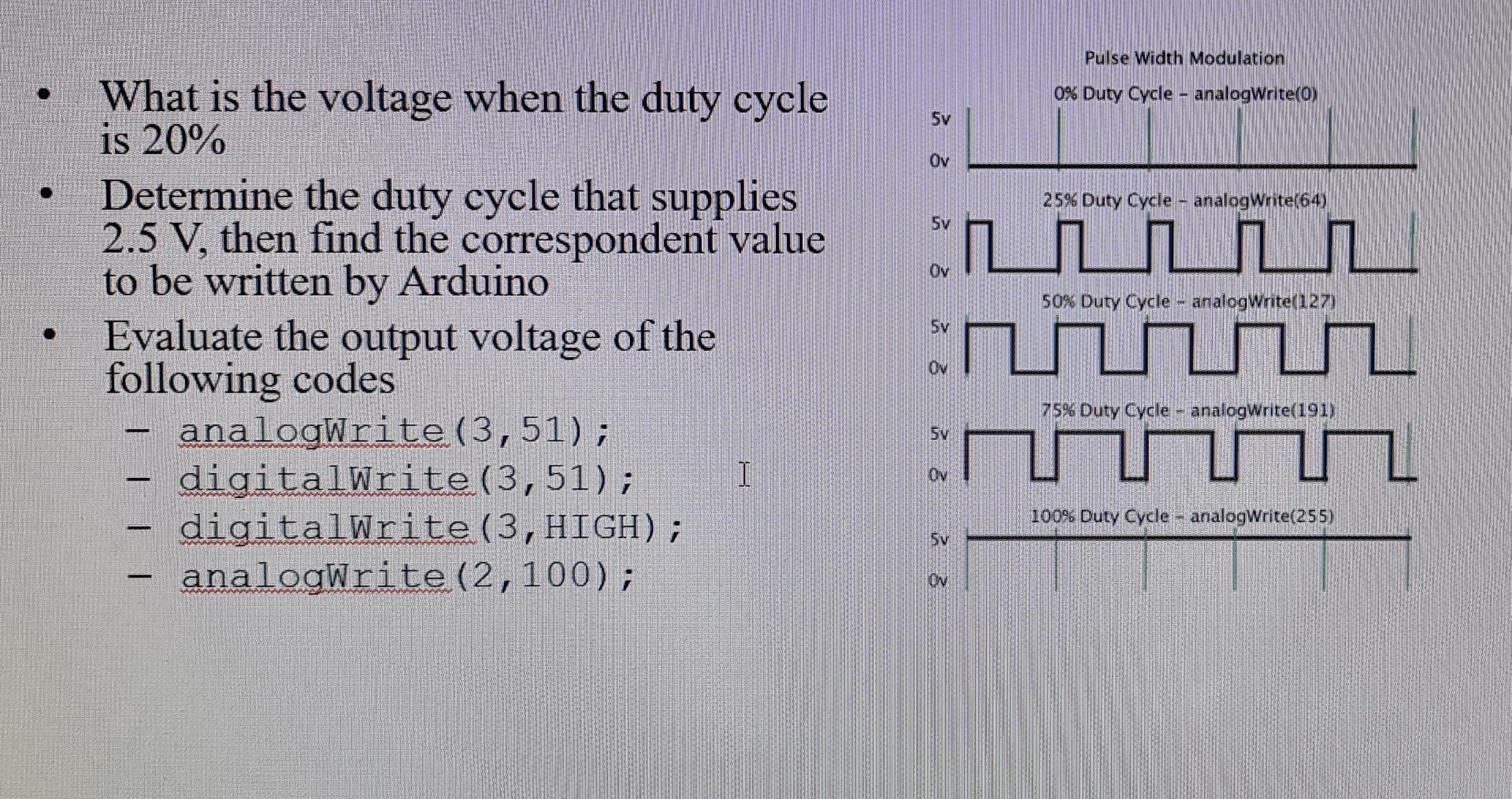

What is the voltage when the duty cycle is 20% Determine the duty cycle that supplies 2.5 V, then find the correspondent value to be written by Arduino Evaluate the output voltage of the following codes - analogWrite (3,51); digitalWrite(3,51); I - digitalWrite(3, HIGH); - analogWrite (2, 100); Pulse Width Modulation 0% Duty Cycle - analogWrite(0) 5v Ov 25% Duty Cycle - analogWrite(64) கப்பபட Ov 50% Duty Cycle - analogWrite(127) SV rrrrr Ov 75% Duty Cycle - analogWrite(191) 5v ▬▬▬ Ov 100% Duty Cycle - analogWrite(255) Sv Üv
