Given the circuit in Figure 7-4, calculate the total current in the circuit. 50 Q 30 Ω 14.8 V Point A 30 Ω Figure 7-4 O

Post by answerhappygod »

1
1 (24.67 KiB) Viewed 26 times

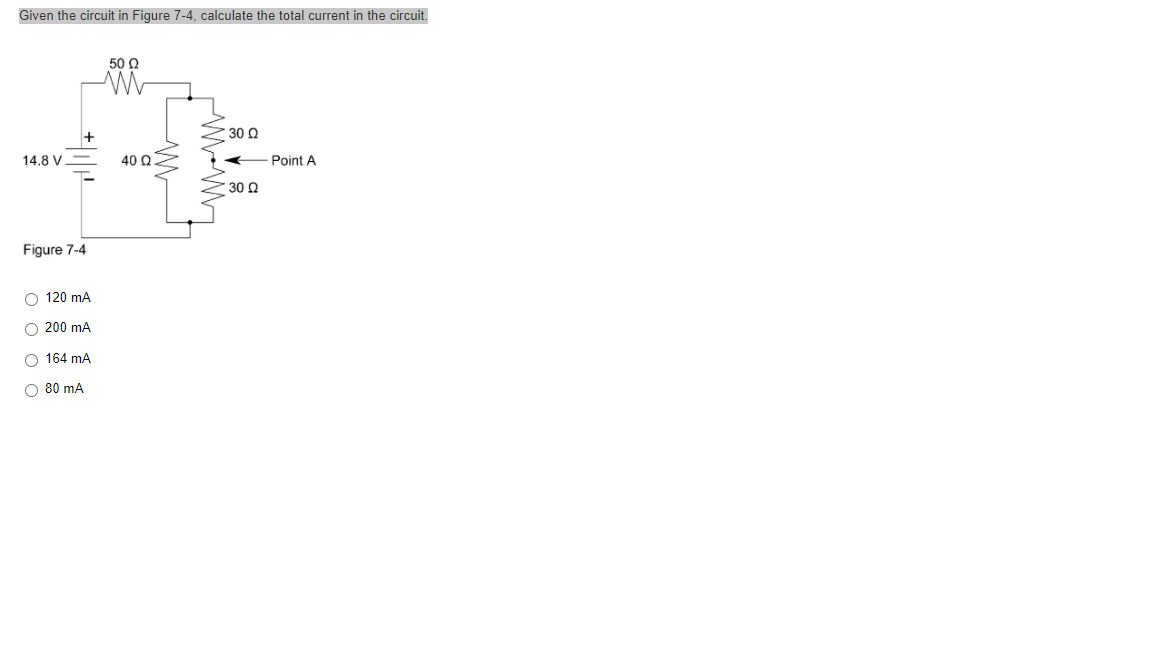

Given the circuit in Figure 7-4, calculate the total current in the circuit. 50 Q 30 Ω 14.8 V Point A 30 Ω Figure 7-4 O 120 mA O200 mA O 164 mA O 80 mA 40 Ω.
