Q1. For the circuit shown below, sketch io & Vo a. Find the conduction angle of the thyristor. Find the average output v

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q1. For the circuit shown below, sketch io & Vo a. Find the conduction angle of the thyristor. Find the average output v

Post by answerhappygod »

Q1 For The Circuit Shown Below Sketch Io Vo A Find The Conduction Angle Of The Thyristor Find The Average Output V 1
Q1 For The Circuit Shown Below Sketch Io Vo A Find The Conduction Angle Of The Thyristor Find The Average Output V 1 (26.76 KiB) Viewed 18 times

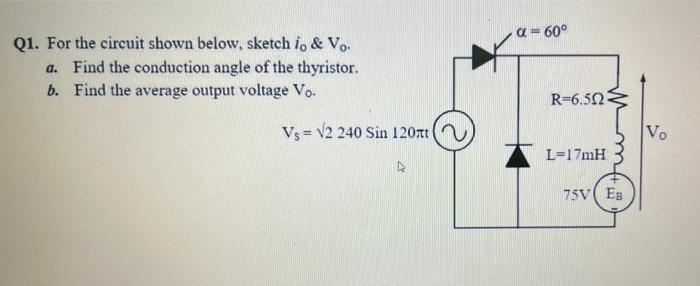

Q1. For the circuit shown below, sketch io & Vo a. Find the conduction angle of the thyristor. Find the average output voltage Vo. b. Vs = √2 240 Sin 120mt ( a = 60° R-6.502- L=17mH 75V EB Vo
