Exercise 2: A d.c. shunt motor, operating from a single-phase half-controlled bridge at speed of 1450 rpm, has an input

Post by answerhappygod »

Exercise 2 A D C Shunt Motor Operating From A Single Phase Half Controlled Bridge At Speed Of 1450 Rpm Has An Input 1

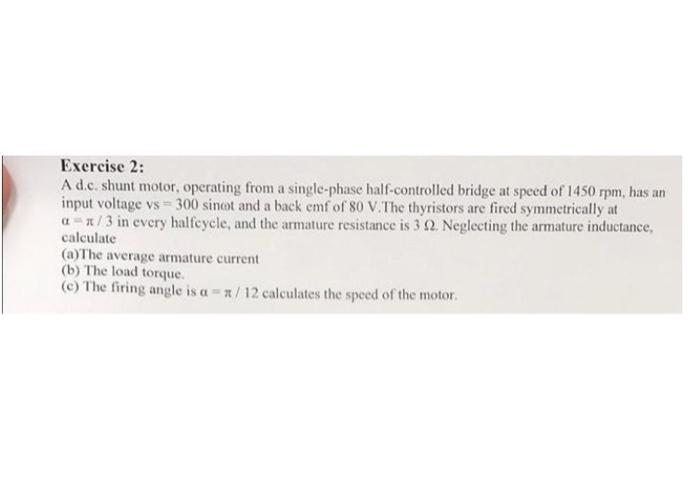

Exercise 2 A D C Shunt Motor Operating From A Single Phase Half Controlled Bridge At Speed Of 1450 Rpm Has An Input 1 (19.82 KiB) Viewed 37 times
Exercise 2: A d.c. shunt motor, operating from a single-phase half-controlled bridge at speed of 1450 rpm, has an input voltage vs 300 sinct and a back emf of 80 V.The thyristors are fired symmetrically at a n/3 in every halfcycle, and the armature resistance is 3 02. Neglecting the armature inductance, calculate (a)The average armature current (b) The load torque. (e) The firing angle is a = n/12 calculates the speed of the motor.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
