Q3-[10 marks] Find the values of Rp and RG₁ in the circuit shown so that Vps =-3 V and Vovl = 5 V. The PMOS has: V₁p=-1

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q3-[10 marks] Find the values of Rp and RG₁ in the circuit shown so that Vps =-3 V and Vovl = 5 V. The PMOS has: V₁p=-1

Post by answerhappygod »

Q3 10 Marks Find The Values Of Rp And Rg In The Circuit Shown So That Vps 3 V And Vovl 5 V The Pmos Has V P 1 1
Q3 10 Marks Find The Values Of Rp And Rg In The Circuit Shown So That Vps 3 V And Vovl 5 V The Pmos Has V P 1 1 (13.25 KiB) Viewed 26 times

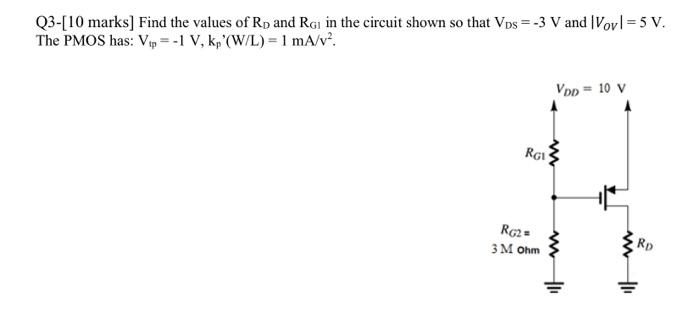

Q3-[10 marks] Find the values of Rp and RG₁ in the circuit shown so that Vps =-3 V and Vovl = 5 V. The PMOS has: V₁p=-1 V, kp'(W/L) = 1 mA/v². VDD = 10 V RGV RG2= 3 M Ohm www an t Rp
