8. The topology of power system is shown in the following figure. ZÃa, Zab, ZbB are known, UA=115kV, UB=114kV, and UN-11

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

8. The topology of power system is shown in the following figure. ZÃa, Zab, ZbB are known, UA=115kV, UB=114kV, and UN-11

Post by answerhappygod »

8 The Topology Of Power System Is Shown In The Following Figure Zaa Zab Zbb Are Known Ua 115kv Ub 114kv And Un 11 1
8 The Topology Of Power System Is Shown In The Following Figure Zaa Zab Zbb Are Known Ua 115kv Ub 114kv And Un 11 1 (159.21 KiB) Viewed 32 times

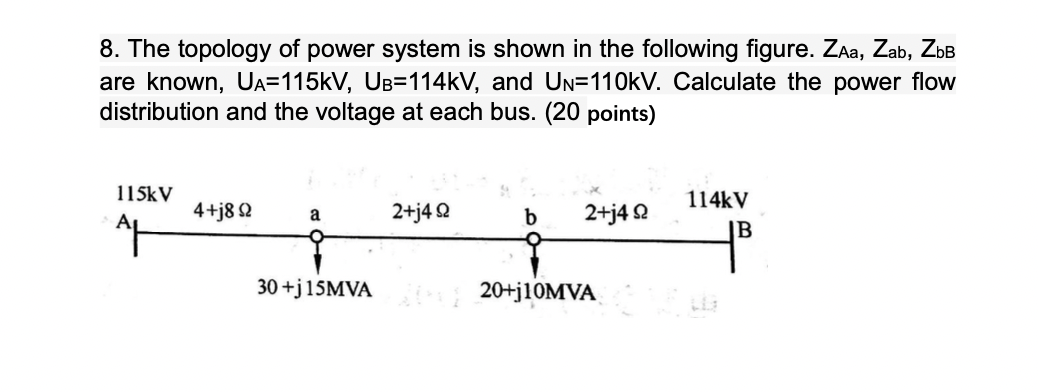

8. The topology of power system is shown in the following figure. ZÃa, Zab, ZbB are known, UA=115kV, UB=114kV, and UN-110kV. Calculate the power flow distribution and the voltage at each bus. (20 points) 115kV 4+j8 92 a 2+j4 92 b 2+j4 92 114kV IB 30+j15MVA 20+j10MVA AH
