Ho=4xx107 Question1 For the shown magnetic circuit: 1- find the reluctances of all branches, 2-Find the magnetomotive fo

[answerhappygod]

Ho 4xx107 Question1 For The Shown Magnetic Circuit 1 Find The Reluctances Of All Branches 2 Find The Magnetomotive Fo 1 (24.38 KiB) Viewed 37 times

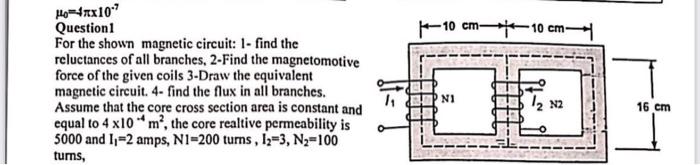

Ho=4xx107 Question1 For the shown magnetic circuit: 1- find the reluctances of all branches, 2-Find the magnetomotive force of the given coils 3-Draw the equivalent magnetic circuit. 4- find the flux in all branches. Assume that the core cross section area is constant and equal to 4 x10 m², the core realtive permeability is 5000 and I₁=2 amps, N1-200 turns, 12-3, N₂=100 turns, 10 cm 10 cm- --------------- NI 12 N2 =========‒‒‒‒‒ 16 cm
