Question 1 a) By using ADS software, design a single stub transmission line impedance matching network to match a 500 so

[answerhappygod]

Question 1 A By Using Ads Software Design A Single Stub Transmission Line Impedance Matching Network To Match A 500 So 1 (67.03 KiB) Viewed 16 times

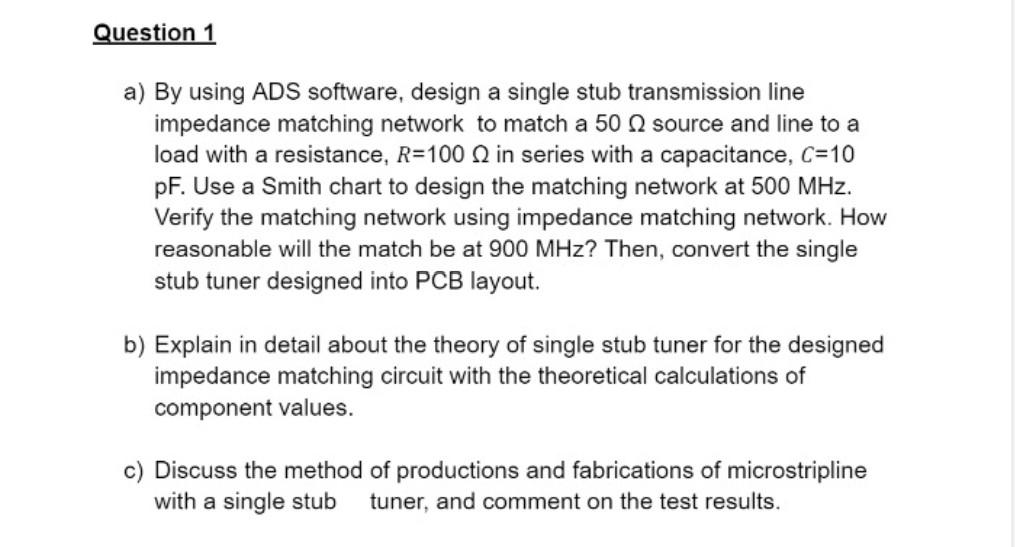

Question 1 a) By using ADS software, design a single stub transmission line impedance matching network to match a 500 source and line to a load with a resistance, R=1002 in series with a capacitance, C=10 pF. Use a Smith chart to design the matching network at 500 MHz. Verify the matching network using impedance matching network. How reasonable will the match be at 900 MHz? Then, convert the single stub tuner designed into PCB layout. b) Explain in detail about the theory of single stub tuner for the designed impedance matching circuit with the theoretical calculations of component values. c) Discuss the method of productions and fabrications of microstripline with a single stub tuner, and comment on the test results.
