In the RL ckt., determine the impedance at each of the following frequencies: (a) 100 Hz (b) 500 Hz (c) 1 kHz (d) 2 kHz

Post by answerhappygod »

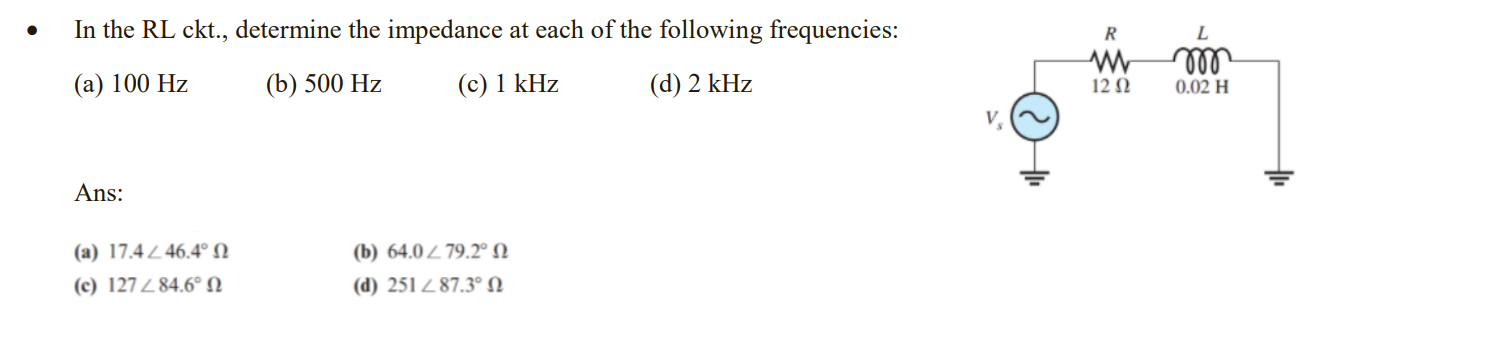

In The Rl Ckt Determine The Impedance At Each Of The Following Frequencies A 100 Hz B 500 Hz C 1 Khz D 2 Khz 1
In The Rl Ckt Determine The Impedance At Each Of The Following Frequencies A 100 Hz B 500 Hz C 1 Khz D 2 Khz 1 (78.85 KiB) Viewed 17 times
In the RL ckt., determine the impedance at each of the following frequencies: (a) 100 Hz (b) 500 Hz (c) 1 kHz (d) 2 kHz Ans: (a) 17.446.4° N (c) 127 / 84.6° Ω (b) 64.079.2° N (d) 251 287.3° N R m m 12 02 0.02 H
