c) Lor (6 points) The per-phase impedance of a short three-phase transmission line is 0.5/53.15° 0. The three-phase load

Post by answerhappygod »

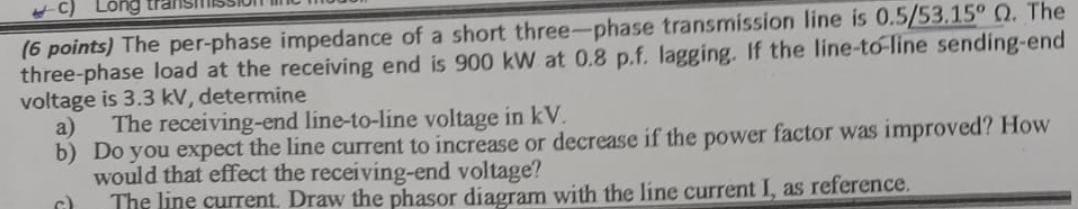

C Lor 6 Points The Per Phase Impedance Of A Short Three Phase Transmission Line Is 0 5 53 15 0 The Three Phase Load 1
C Lor 6 Points The Per Phase Impedance Of A Short Three Phase Transmission Line Is 0 5 53 15 0 The Three Phase Load 1 (32.72 KiB) Viewed 61 times
c) Lor (6 points) The per-phase impedance of a short three-phase transmission line is 0.5/53.15° 0. The three-phase load at the receiving end is 900 kW at 0.8 p.f. lagging. If the line-to-line sending-end voltage is 3.3 kV, determine a) The receiving-end line-to-line voltage in kV. b) Do you expect the line current to increase or decrease if the power factor was improved? How would that effect the receiving-end voltage? The line current. Draw the phasor diagram with the line current I, as reference.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
