2. For the following circuit, find Vout with no load and with a 10 k load for each of the following positions of the pot
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. For the following circuit, find Vout with no load and with a 10 k load for each of the following positions of the pot

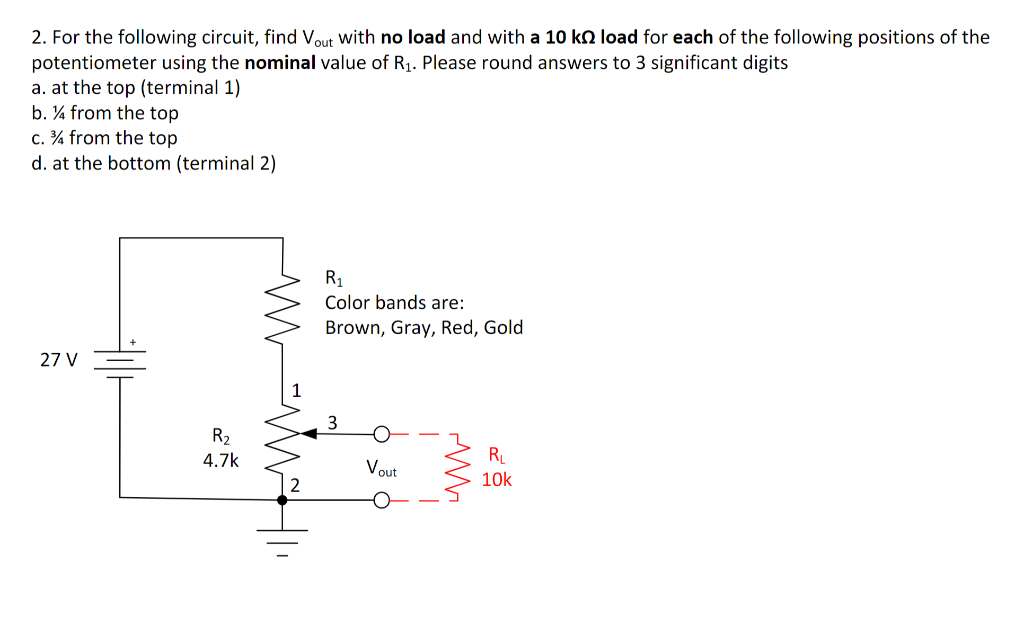

2. For the following circuit, find Vout with no load and with a 10 k load for each of the following positions of the potentiometer using the nominal value of R₁. Please round answers to 3 significant digits a. at the top (terminal 1) b. % from the top c. 4 from the top d. at the bottom (terminal 2) R₁ Color bands are: Brown, Gray, Red, Gold 27 V Vout +1+ R₂ 4.7k M WHII MM R₁ 10k
