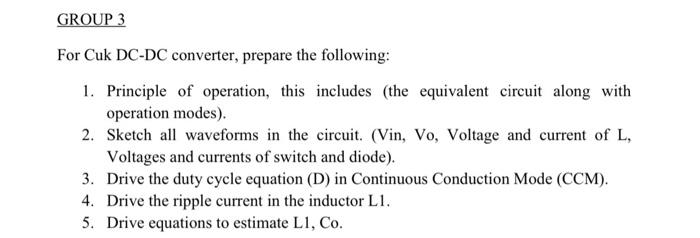

GROUP 3 For Cuk DC-DC converter, prepare the following: 1. Principle of operation, this includes (the equivalent circuit along with operation modes). 2. Sketch all waveforms in the circuit. (Vin, Vo, Voltage and current of L, Voltages and currents of switch and diode). 3. Drive the duty cycle equation (D) in Continuous Conduction Mode (CCM). 4. Drive the ripple current in the inductor L1. 5. Drive equations to estimate L1, Co.
