9. Consider the DC circuit shown below, with currents as indicated. Using Kir- choff's voltage and current laws, determi
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
9. Consider the DC circuit shown below, with currents as indicated. Using Kir- choff's voltage and current laws, determi

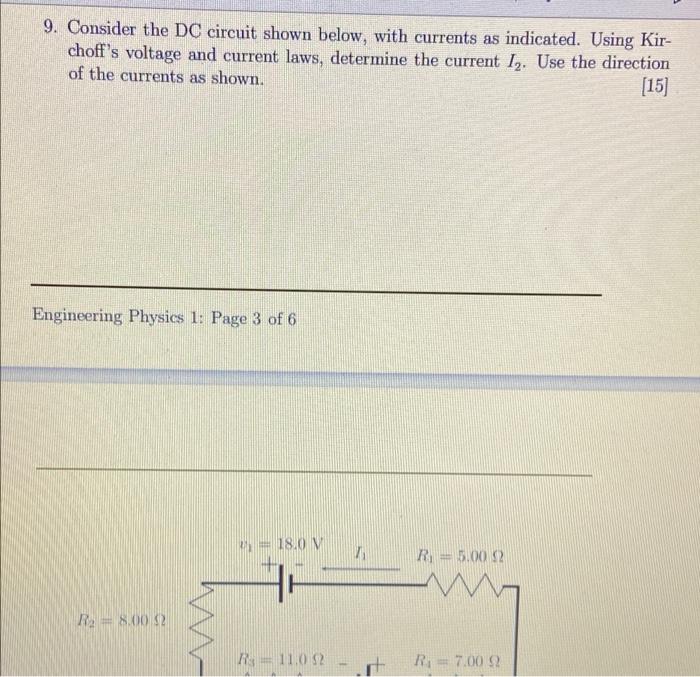

9. Consider the DC circuit shown below, with currents as indicated. Using Kir- choff's voltage and current laws, determine the current I₂. Use the direction of the currents as shown. [15] Engineering Physics 1: Page 3 of 6 ₁18.0 V R₂ = 8.00 $2 Rs 11.02 11 R. = 5.00 $2 rt R₁ = 7.00 9 M
