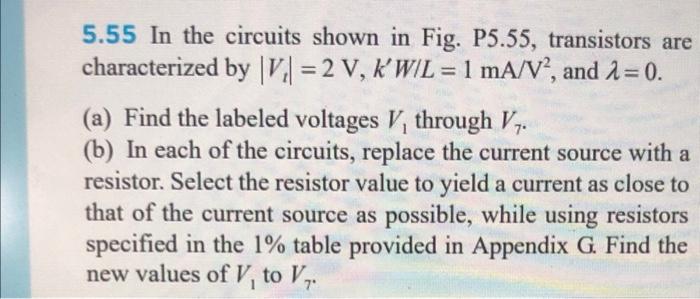

5.55 In the circuits shown in Fig. P5.55, transistors are characterized by V=2 V, K'W/L = 1 mA/V², and 2 = 0. (a) Find the labeled voltages V, through V₁. (b) In each of the circuits, replace the current source with a resistor. Select the resistor value to yield a current as close to that of the current source as possible, while using resistors specified in the 1% table provided in Appendix G. Find the new values of V, to V₁.

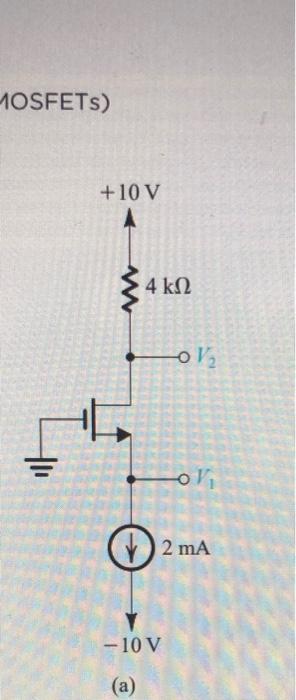

MOSFETS) +10 V 4 www 4 ΚΩ 4 - 10 V (a) 01/₂2 01₁ 2 mA

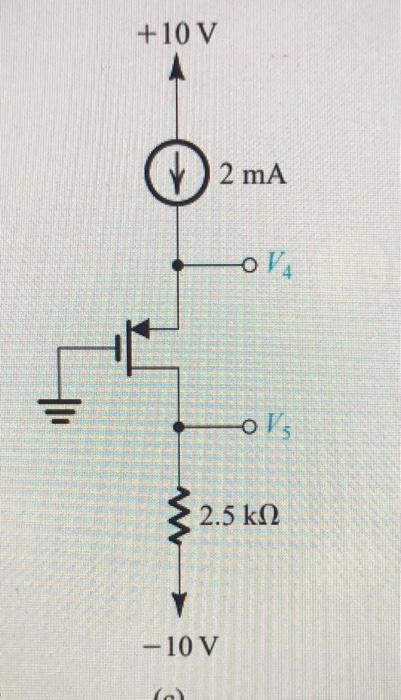

+10 V ✪ www 2 mA - 10 V 0 V4 -OV 2.5 ΚΩ
