Q3. For the power electronic circuit shown in figure below, sketch the output voltage Vo, and Find the average & RMS out

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q3. For the power electronic circuit shown in figure below, sketch the output voltage Vo, and Find the average & RMS out

Post by answerhappygod »

Q3 For The Power Electronic Circuit Shown In Figure Below Sketch The Output Voltage Vo And Find The Average Rms Out 1
Q3 For The Power Electronic Circuit Shown In Figure Below Sketch The Output Voltage Vo And Find The Average Rms Out 1 (23.45 KiB) Viewed 58 times

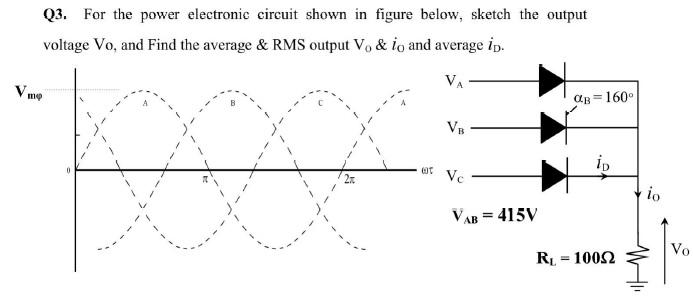

Q3. For the power electronic circuit shown in figure below, sketch the output voltage Vo, and Find the average & RMS output Vo & io and average in. VA CB 160° V me VB in et Vc ∞ R₁ = 10052 VAB = 415V io Vo
