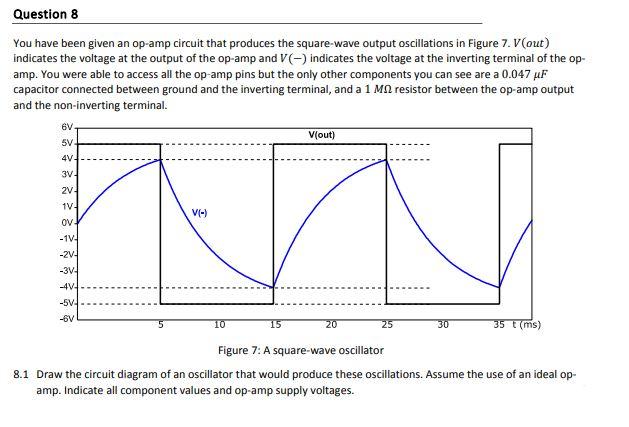

Question 8 You have been given an op-amp circuit that produces the square-wave output oscillations in Figure 7. V(out) indicates the voltage at the output of the op-amp and V(-) indicates the voltage at the inverting terminal of the op- amp. You were able to access all the op-amp pins but the only other components you can see are a 0.047 µF capacitor connected between ground and the inverting terminal, and a 1 M resistor between the op-amp output and the non-inverting terminal. 6V. V(out) 5V- 4V- 3V 2V- 1V- V(-) ov -1V- -2V- -3V -4V- -5V- -6V 10 15 20 25 30 35 t (ms) Figure 7: A square-wave oscillator 8.1 Draw the circuit diagram of an oscillator that would produce these oscillations. Assume the use of an ideal op- amp. Indicate all component values and op-amp supply voltages.
