Q2. (50p) Consider the MOSFET amplifier circuit given below. The MOSFET parameters are given as Kp = 0.5 mA/V², V₁p = −2

[answerhappygod]

Q2 50p Consider The Mosfet Amplifier Circuit Given Below The Mosfet Parameters Are Given As Kp 0 5 Ma V V P 2 1 (57.21 KiB) Viewed 45 times

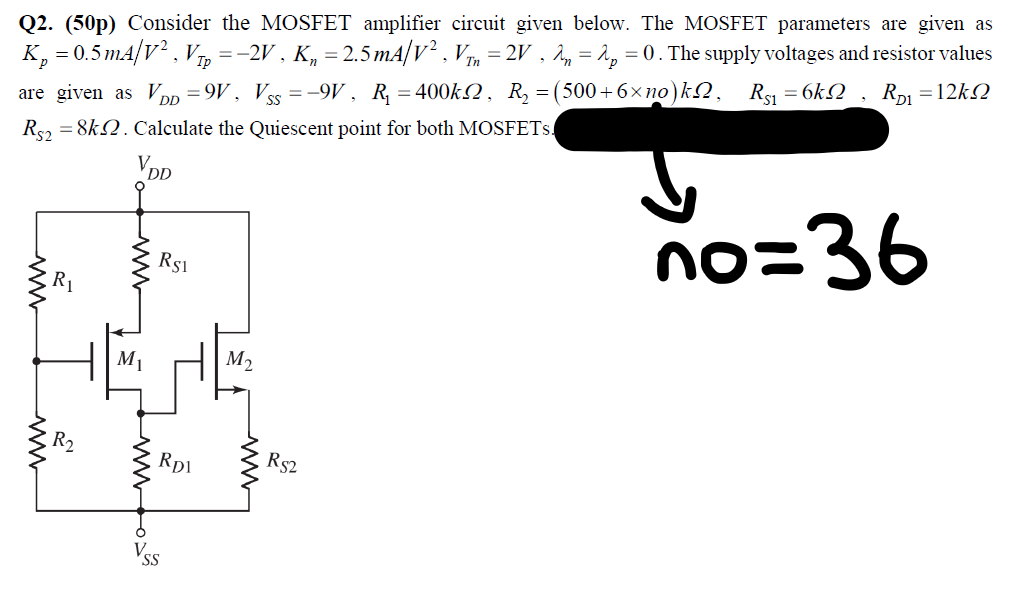

Q2. (50p) Consider the MOSFET amplifier circuit given below. The MOSFET parameters are given as Kp = 0.5 mA/V², V₁p = −2V, K₂ = 2.5 mA/V², VT₂ = 2V, ^₂ = λp = 0. The supply voltages and resistor values are given as VDD=9V, VSS=-9V, R₂ = 400k2, R₂ = (500+6×no)k, R$₁=6k RD1 = 12kQ2 Rs2 = 8kQ2. Calculate the Quiescent point for both MOSFETS. VDD no=36 R₁ www R₂ M₁ R$1 Rp1 SS M₂ www R$2
