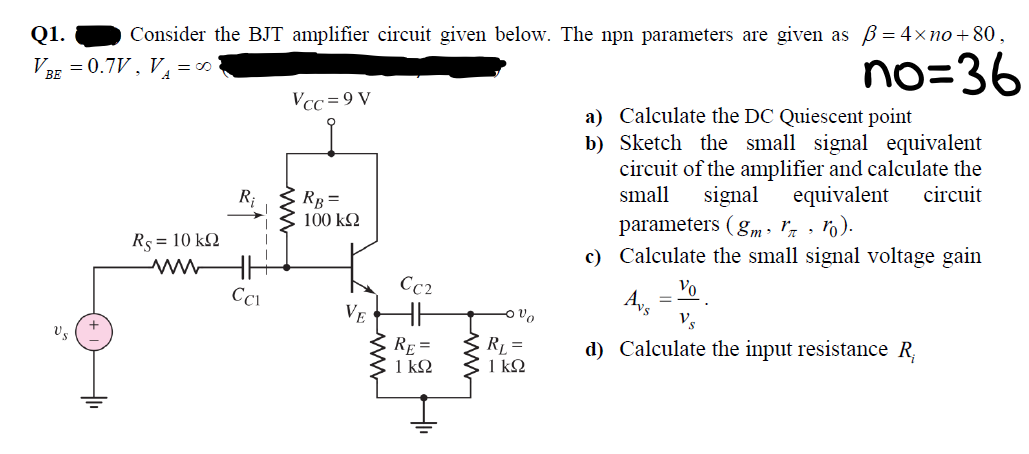

Q1. V BE Vs Consider the BJT amplifier circuit given below. The npn parameters are given as B=4×no +80, = 0.7V, V₁ = 00

[answerhappygod]

Q1 V Be Vs Consider The Bjt Amplifier Circuit Given Below The Npn Parameters Are Given As B 4 No 80 0 7v V 00 1 (56.77 KiB) Viewed 55 times

Q1. V BE Vs Consider the BJT amplifier circuit given below. The npn parameters are given as B=4×no +80, = 0.7V, V₁ = 00 no=36 Vcc=9V a) Calculate the DC Quiescent point b) Sketch the small signal equivalent circuit of the amplifier and calculate the small signal equivalent circuit parameters (gm, rz, ro). RB = 100 ΚΩ Rς = 10 kΩ c) Calculate the small signal voltage gain www Vo = Vs d) Calculate the input resistance R R₁ CCI VE Cc2 RE= 1kQ2 ove RL = 1 kQ2
