Q4. For the three-phase fully-controlled bridge rectifier circuit shown with purely resistive load: a. Sketch the output

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q4. For the three-phase fully-controlled bridge rectifier circuit shown with purely resistive load: a. Sketch the output

Post by answerhappygod »

Q4 For The Three Phase Fully Controlled Bridge Rectifier Circuit Shown With Purely Resistive Load A Sketch The Output 1
Q4 For The Three Phase Fully Controlled Bridge Rectifier Circuit Shown With Purely Resistive Load A Sketch The Output 1 (25.53 KiB) Viewed 35 times

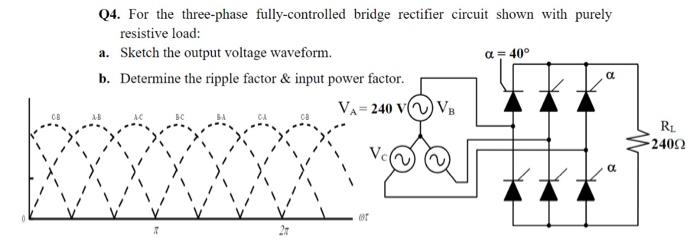

Q4. For the three-phase fully-controlled bridge rectifier circuit shown with purely resistive load: a. Sketch the output voltage waveform. α= 40° b. Determine the ripple factor & input power factor. a 77 VA-240 V VB Vel a *** (T R₂ -24002
