1. Refer to the figure-1, consider all diodes used as silicon diodes. a) Draw input waveform for Vin and label it with V

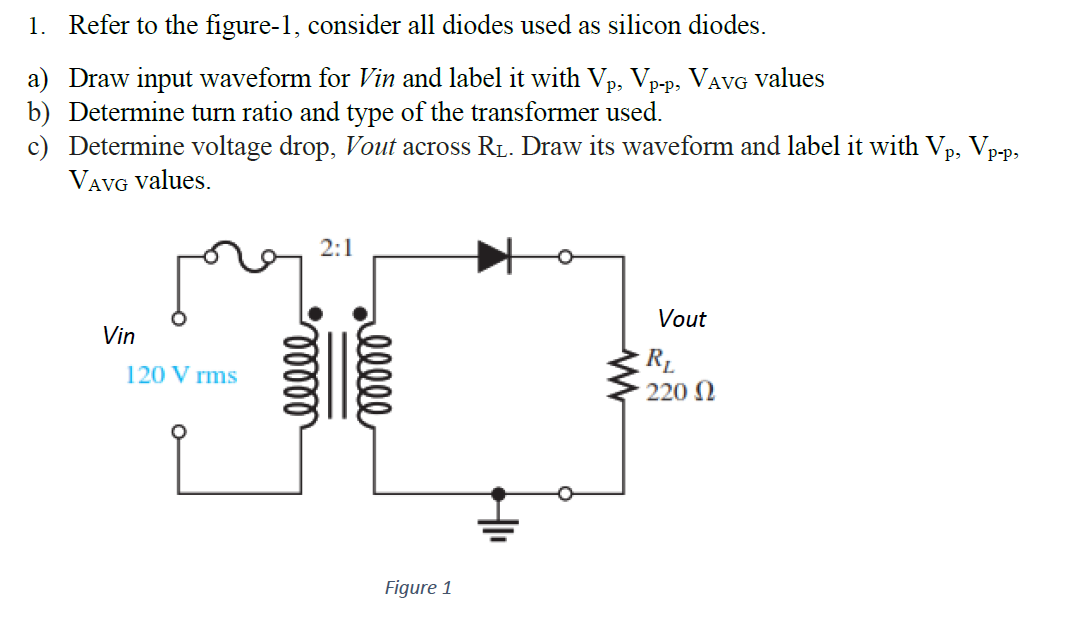

1. Refer to the figure-1, consider all diodes used as silicon diodes. a) Draw input waveform for Vin and label it with V₁, Vp-p, VAVG values b) Determine turn ratio and type of the transformer used. c) Determine voltage drop, Vout across R₁. Draw its waveform and label it with Vp, Vp-p, VAVG values. 2:1 Vout Vin RL 220 Ω 120 Vrms ooooo ooooo Figure 1
