Question 3) (35 Marks) A square-wave inverter is used tom supply an RL series load with R = 100 and L = 35 mH. The dc in

Post by answerhappygod »

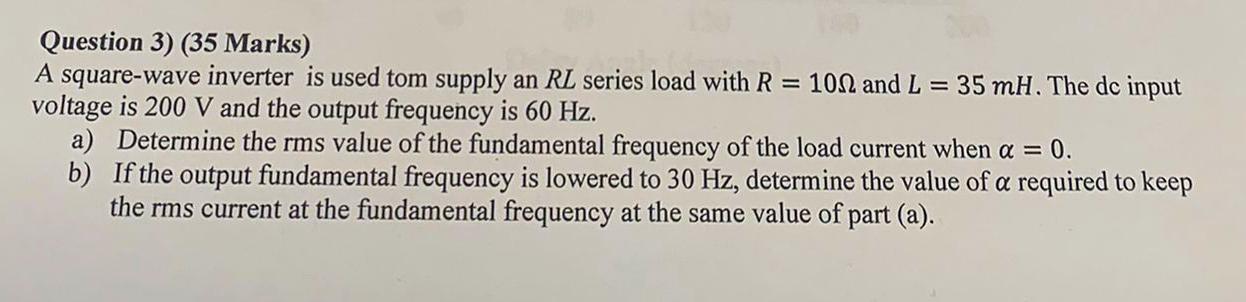

Question 3 35 Marks A Square Wave Inverter Is Used Tom Supply An Rl Series Load With R 100 And L 35 Mh The Dc In 1
Question 3 35 Marks A Square Wave Inverter Is Used Tom Supply An Rl Series Load With R 100 And L 35 Mh The Dc In 1 (48.3 KiB) Viewed 42 times
Question 3) (35 Marks) A square-wave inverter is used tom supply an RL series load with R = 100 and L = 35 mH. The dc input voltage is 200 V and the output frequency is 60 Hz. a) Determine the rms value of the fundamental frequency of the load current when α = 0. b) If the output fundamental frequency is lowered to 30 Hz, determine the value of a required to keep the rms current at the fundamental frequency at the same value of part (a).
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
