Question 1 a) Briefly explain THREE (3) differences between open loop system and closed loop system. You need draw diagr

[answerhappygod]

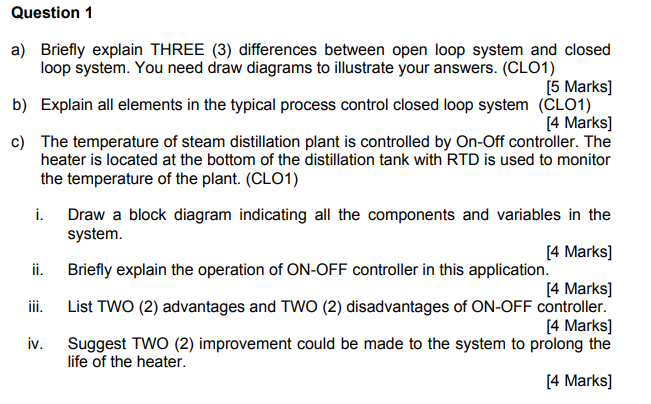

Question 1 A Briefly Explain Three 3 Differences Between Open Loop System And Closed Loop System You Need Draw Diagr 1 (58.59 KiB) Viewed 59 times

Question 1 a) Briefly explain THREE (3) differences between open loop system and closed loop system. You need draw diagrams to illustrate your answers. (CLO1) [5 Marks] b) Explain all elements in the typical process control closed loop system (CLO1) [4 Marks] c) The temperature of steam distillation plant is controlled by On-Off controller. The heater is located at the bottom of the distillation tank with RTD is used to monitor the temperature of the plant. (CLO1) i. Draw a block diagram indicating all the components and variables in the system. [4 Marks] ii. Briefly explain the operation of ON-OFF controller in this application. [4 Marks] iii. List TWO (2) advantages and TWO (2) disadvantages of ON-OFF controller. [4 Marks] iv. Suggest TWO (2) improvement could be made to the system to prolong the life of the heater. [4 Marks]
