- I need a report about that project.
- Mathematical operations will be shown (can be done by entering
a random number using the formulas given above.)
- Please explain the construction of the device step by
step and has to be detailed, what are the materials used. (Note
that Iron rod or anything metal can be used.)

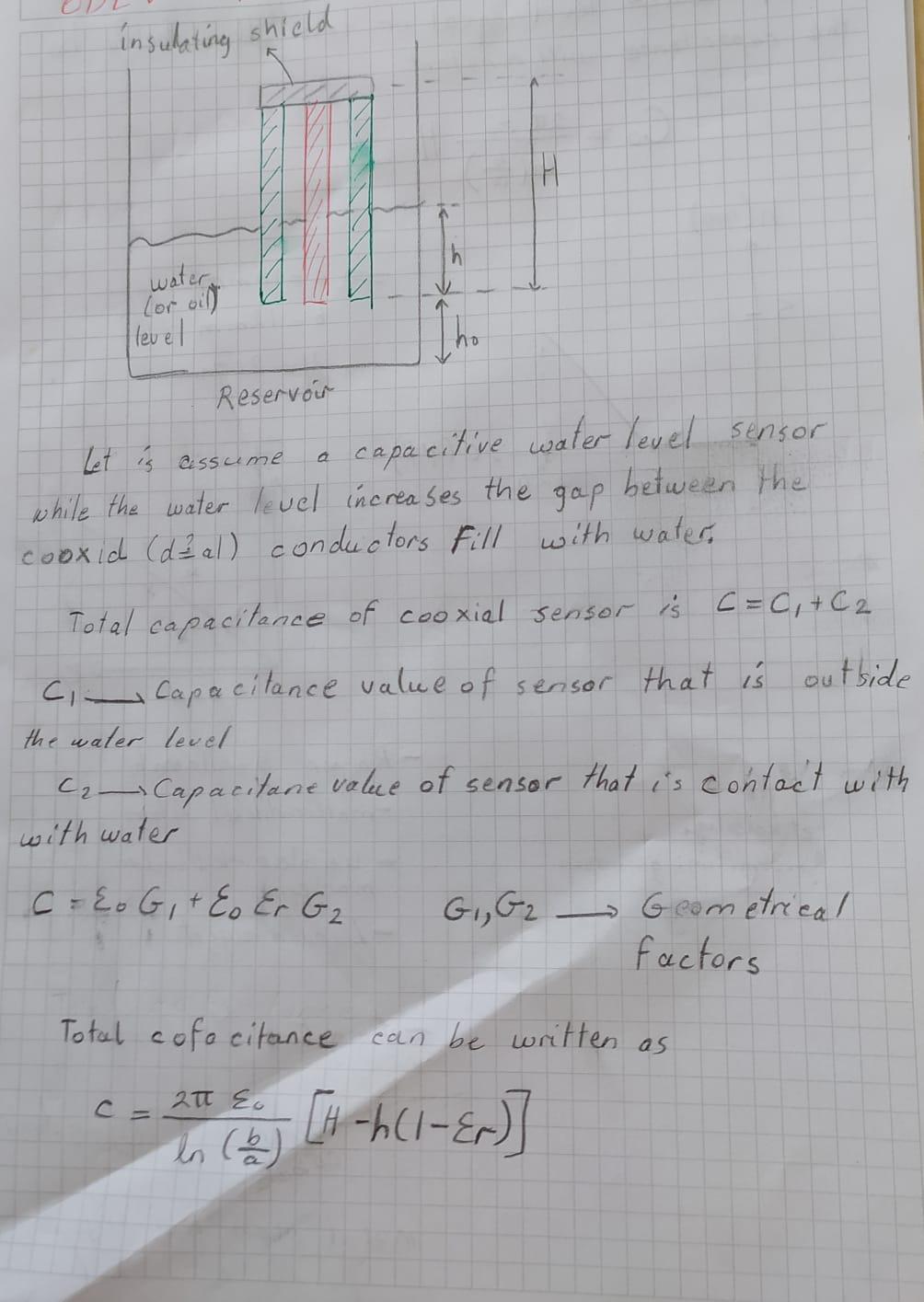

insulating shield water. (or oil) level h TH 10 Reservoir assume a capacitive water level sensor between the while the water level increases the gap cooxid (d²al) conductors Fill with water Total capacitance of cooxial sensor is C=C₁ + C₂ L C₁ Capacitance value of sensor that is outside the water level. C₂-Capacitane value of sensor that is contact with with water C = Eo G₁ + Eo Er G₂ G₁, G₂ Geometrical factors Total cofa citance can be written as C = 2tt E ln (1/2) [#-h(1-Er)]

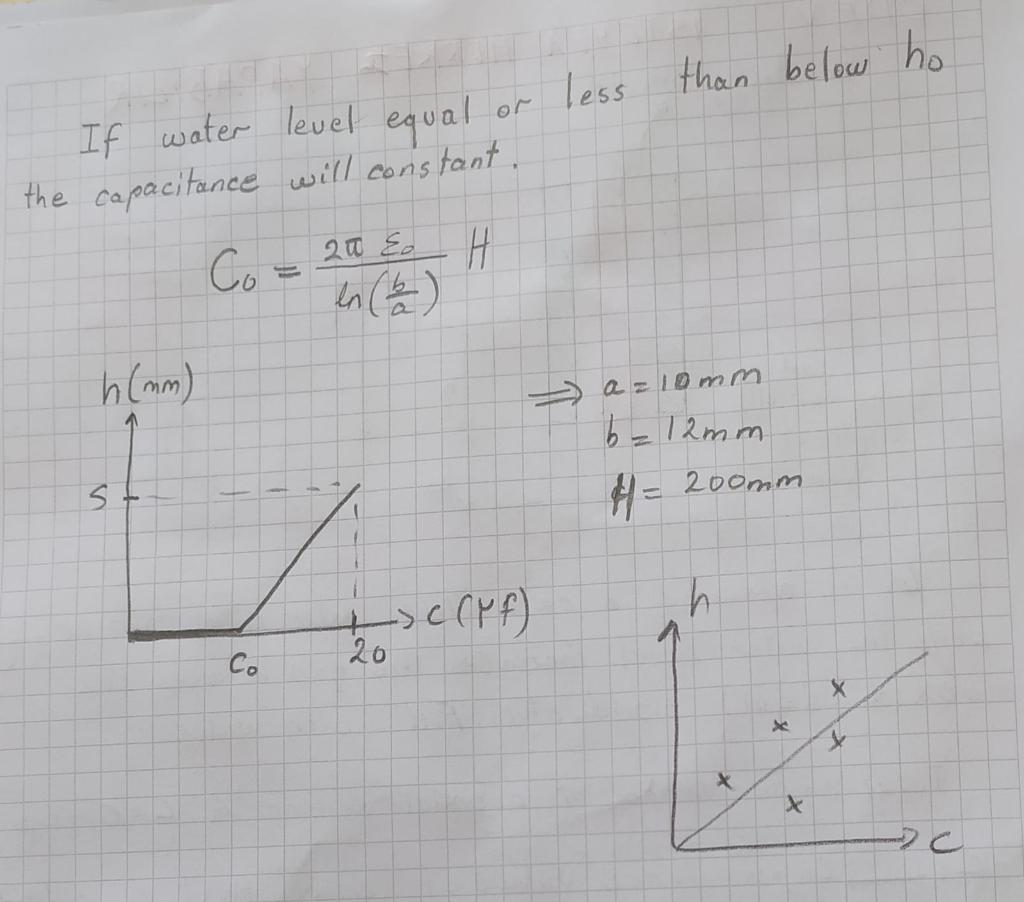

If water level equal the capacitance will constant. E Со C₁ = 2t & H in (12) h (mm) ->C (PF) 20 S = Co less than below ho a=10mm b=12mm 4= 200mm h x X 20
