Find the total resistance of the given network (rail-to-rail resistance), given that R1 = 220 Ohm, R2 = 2.3 kOhm, R3 = 6

Post by answerhappygod »

Find The Total Resistance Of The Given Network Rail To Rail Resistance Given That R1 220 Ohm R2 2 3 Kohm R3 6 1
Find The Total Resistance Of The Given Network Rail To Rail Resistance Given That R1 220 Ohm R2 2 3 Kohm R3 6 1 (49.89 KiB) Viewed 56 times

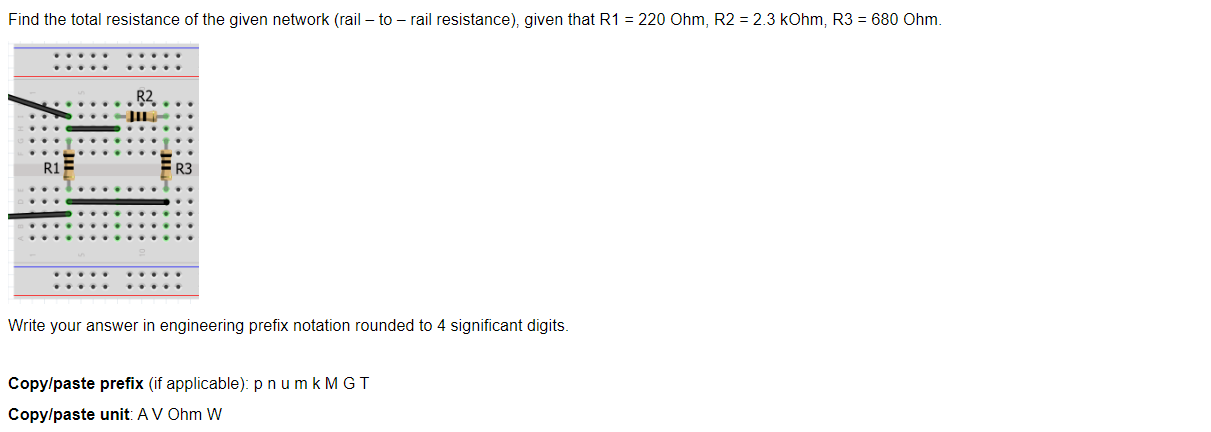

Find the total resistance of the given network (rail-to-rail resistance), given that R1 = 220 Ohm, R2 = 2.3 kOhm, R3 = 680 Ohm. R2 FR3 Write your answer in engineering prefix notation rounded to 4 significant digits. Copy/paste prefix (if applicable): pnum kM GT Copy/paste unit: A V Ohm W
