Exercise 2: (12 Marks) The specifications for the circuit shown below include the following: vi(t) = 220 √2 sin(wt) :f =

[answerhappygod]

Exercise 2 12 Marks The Specifications For The Circuit Shown Below Include The Following Vi T 220 2 Sin Wt F 1 (33.48 KiB) Viewed 48 times

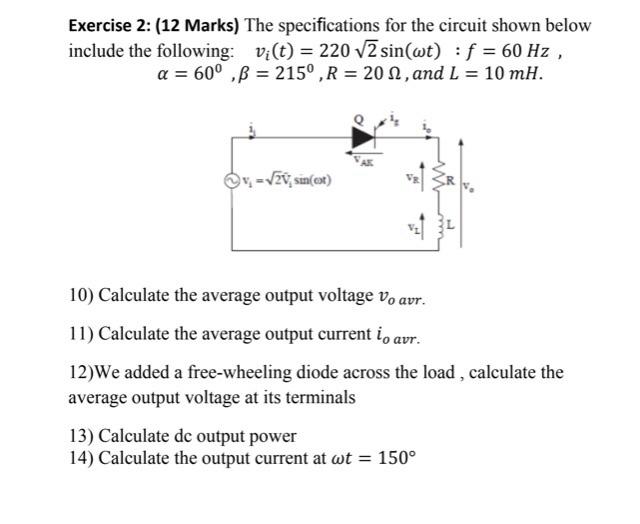

Exercise 2: (12 Marks) The specifications for the circuit shown below include the following: vi(t) = 220 √2 sin(wt) :f = 60 Hz, a = 60°,ß = 215⁰, R = 20 N, and L = 10 mH. -√2V, sin(cot) 10) Calculate the average output voltage vo avr. 11) Calculate the average output current io avr. 12)We added a free-wheeling diode across the load, calculate the average output voltage at its terminals 13) Calculate de output power 14) Calculate the output current at wt = 150°
