- 1 Evaluate The Resulting Transfer Function Using Determinants For Both Nodal And Mesh Analysis 2 Determine The Trans 1 (79.47 KiB) Viewed 35 times
1. Evaluate the resulting transfer function using determinants for both nodal and mesh analysis). 2. Determine the trans
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. Evaluate the resulting transfer function using determinants for both nodal and mesh analysis). 2. Determine the trans

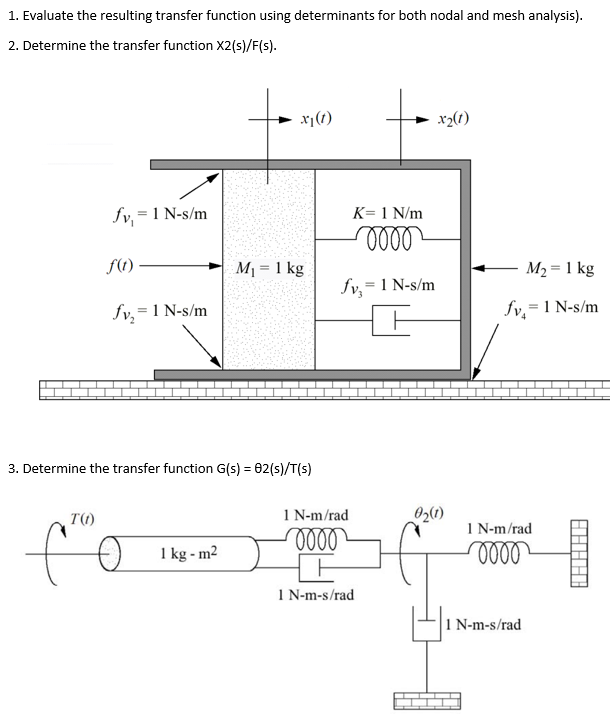

1. Evaluate the resulting transfer function using determinants for both nodal and mesh analysis). 2. Determine the transfer function X2(s)/F(s). x₁ (1) x2(1) fv₁ = 1 N-s/m f(1) fv₂ = 1 N-s/m 3. Determine the transfer function G(s) = 82(s)/T(s) T(1) 1 kg - m² M₁ = 1 kg K= 1 N/m momo fv, = 1 N-s/m 0₂(1) 1 N-m/rad oooo 1 N-m-s/rad M₂ = 1 kg fv₂ = 1 N-s/m 1 N-m/rad 0000 1 N-m-s/rad H
