54. Consider the following transfer function: H(s) (s + 100) ² s² + 10001s +10000 19 (a) Express the transfer function H

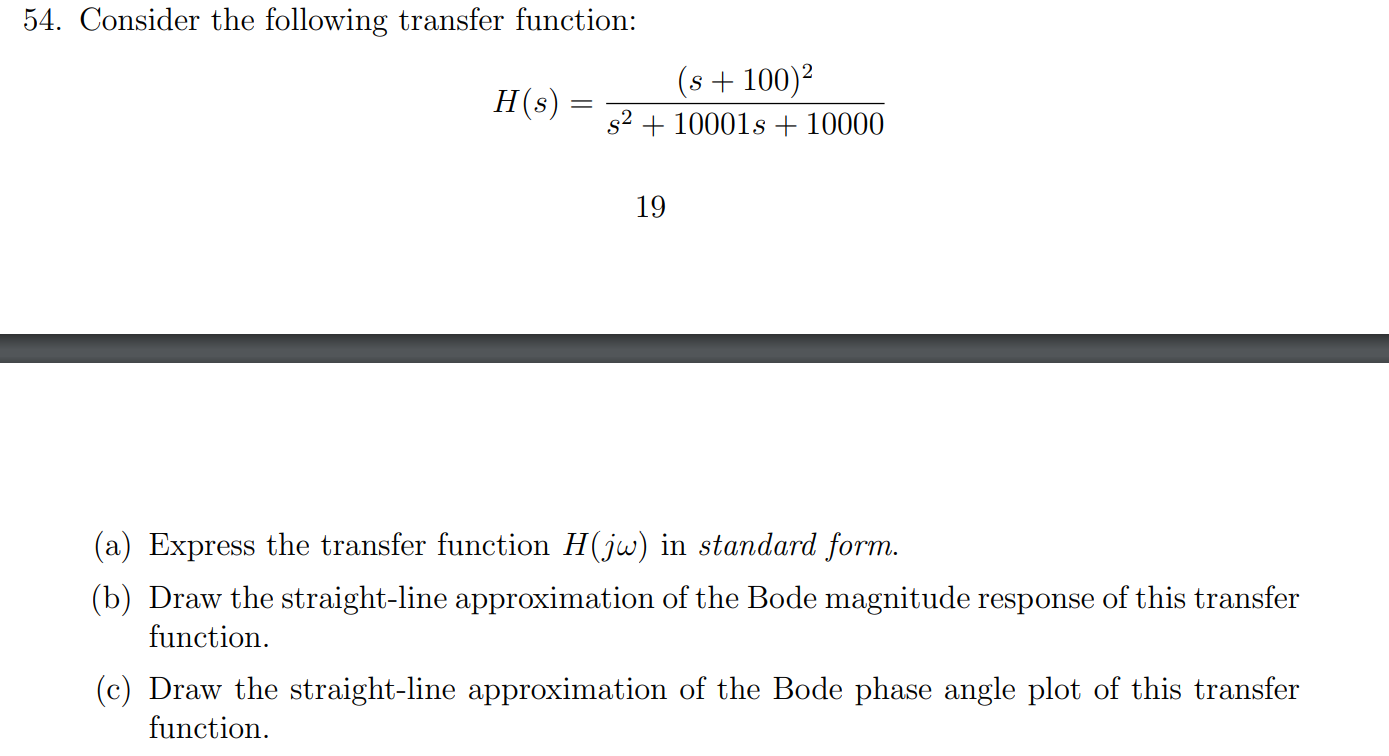

54. Consider the following transfer function: H(s) (s + 100) ² s² + 10001s +10000 19 (a) Express the transfer function H(jw) in standard form. (b) Draw the straight-line approximation of the Bode magnitude response of this transfer function. (c) Draw the straight-line approximation of the Bode phase angle plot of this transfer function.
