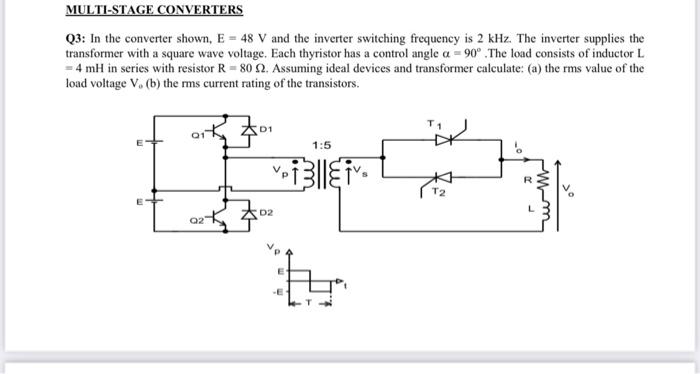

MULTI-STAGE CONVERTERS Q3: In the converter shown, E = 48 V and the inverter switching frequency is 2 kHz. The inverter supplies the transformer with a square wave voltage. Each thyristor has a control angle a = 90° .The load consists of inductor L = 4 mH in series with resistor R-80 2. Assuming ideal devices and transformer calculate: (a) the rms value of the load voltage V. (b) the rms current rating of the transistors. D1 1:5 D D2 tr 3||ETv.
