R (s) Y() Kp + KI - 1 s+ 10 S A control system with a proportional integral controller is given above. (5) Find out fran

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

R (s) Y() Kp + KI - 1 s+ 10 S A control system with a proportional integral controller is given above. (5) Find out fran

Post by answerhappygod »

R S Y Kp Ki 1 S 10 S A Control System With A Proportional Integral Controller Is Given Above 5 Find Out Fran 1
R S Y Kp Ki 1 S 10 S A Control System With A Proportional Integral Controller Is Given Above 5 Find Out Fran 1 (449.52 KiB) Viewed 39 times

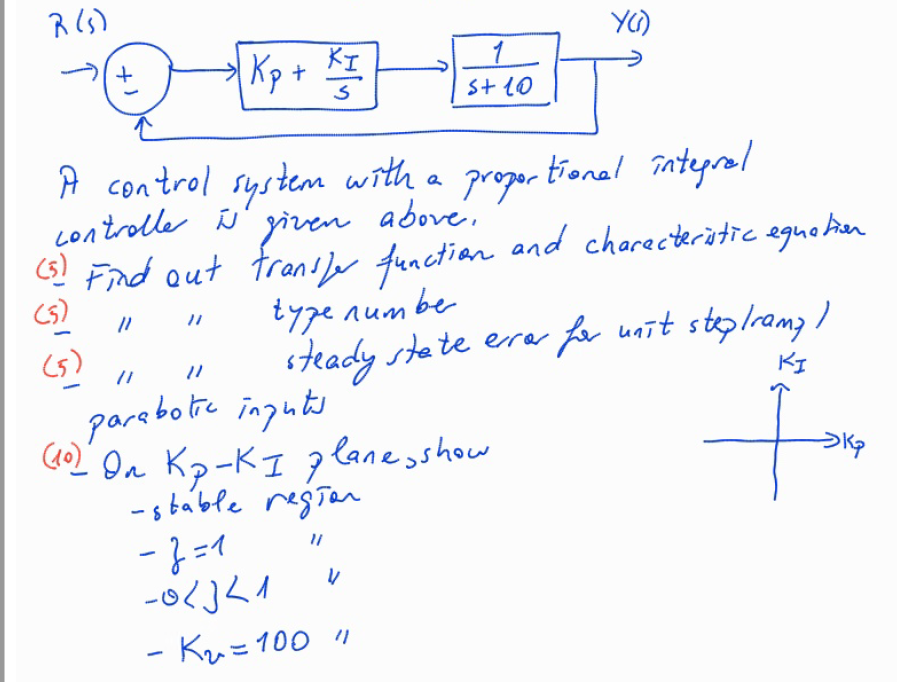

R (s) Y() Kp + KI - 1 s+ 10 S A control system with a proportional integral controller is given above. (5) Find out fransjer function and characteristic egnation (5) /1 // type number (5) "1 steady state ervar for unit step/ramp) KI parabolic inputs (10) On Kp-KI plane, show + >kp -stable region 11 -2=1 -02321 V - K₂=100 "
