#6.22 Sketch the ic-UCE characteristics of an npn transistor having = 100 and V₁ = 100 V. Sketch characteristic curves f

Post by answerhappygod »

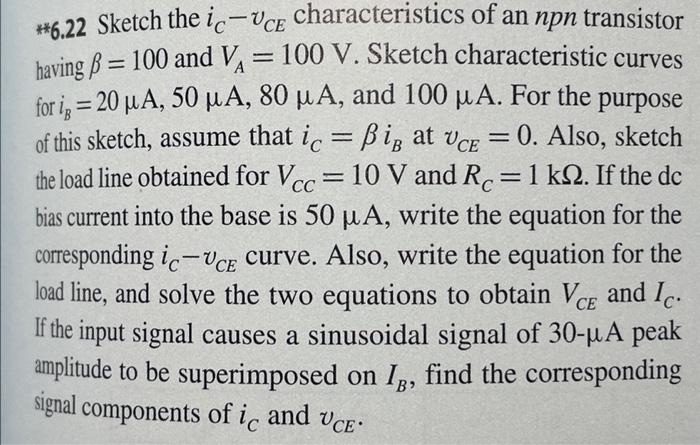

6 22 Sketch The Ic Uce Characteristics Of An Npn Transistor Having 100 And V 100 V Sketch Characteristic Curves F 1
6 22 Sketch The Ic Uce Characteristics Of An Npn Transistor Having 100 And V 100 V Sketch Characteristic Curves F 1 (70.86 KiB) Viewed 62 times
#6.22 Sketch the ic-UCE characteristics of an npn transistor having = 100 and V₁ = 100 V. Sketch characteristic curves for i= 20 μA, 50 μA, 80 µA, and 100 µA. For the purpose of this sketch, assume that ic = ßig at UCE = 0. Also, sketch the load line obtained for Vcc= 10 V and Rc = 1 kQ2. If the dc bias current into the base is 50 µA, write the equation for the corresponding ic-UCE curve. Also, write the equation for the load line, and solve the two equations to obtain VCE and IC. If the input signal causes a sinusoidal signal of 30-µA peak amplitude to be superimposed on I, find the corresponding signal components of ic and UCE
