3.2 3.3 Draw the circuit of an operational amplifier integrator and derive an expression for its output voltage. (You ar

[answerhappygod]

3 2 3 3 Draw The Circuit Of An Operational Amplifier Integrator And Derive An Expression For Its Output Voltage You Ar 1 (22.92 KiB) Viewed 82 times

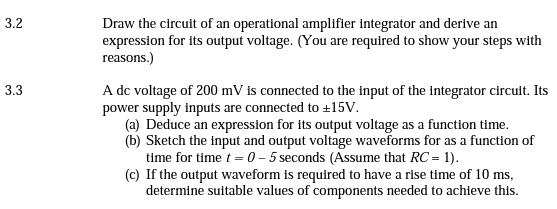

3.2 3.3 Draw the circuit of an operational amplifier integrator and derive an expression for its output voltage. (You are required to show your steps with reasons.) A dc voltage of 200 mV is connected to the input of the integrator circuit. Its power supply inputs are connected to +15V. (a) Deduce an expression for its output voltage as a function time. (b) Sketch the input and output voltage waveforms for as a function of time for time t = 0-5 seconds (Assume that RC = 1). (c) If the output waveform is required to have a rise time of 10 ms, determine suitable values of components needed to achieve this.
