5. Determine the fault current and at faulted bus for a single line to ground fault at bus 4 as shown in the figure 5. G

[answerhappygod]

5 Determine The Fault Current And At Faulted Bus For A Single Line To Ground Fault At Bus 4 As Shown In The Figure 5 G 1 (49.78 KiB) Viewed 66 times

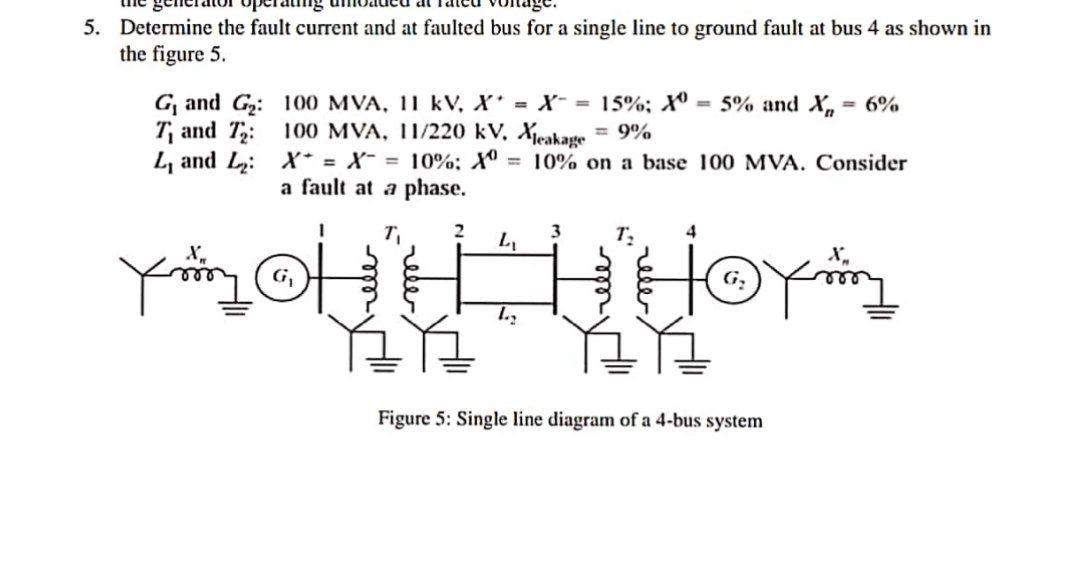

5. Determine the fault current and at faulted bus for a single line to ground fault at bus 4 as shown in the figure 5. G₁ and G₂: 100 MVA, 11 kV, X = X = 15%; X = 5% and X = 6% T₁ and 7₂: 100 MVA, 11/220 kV. Xleakage = 9% L₁ and L₂ X = X = 10%; X = 10% on a base 100 MVA. Consider a fault at a phase. T₁ 2 3 4 X YOHHHH®Yy G₁ Figure 5: Single line diagram of a 4-bus system ܕܐ
