The signal x (t) with spectrum shown below is sampled at a sampling frequency fsam samples/sec. Plot the spectrum G(w) f

Post by answerhappygod »

The Signal X T With Spectrum Shown Below Is Sampled At A Sampling Frequency Fsam Samples Sec Plot The Spectrum G W F 1
The Signal X T With Spectrum Shown Below Is Sampled At A Sampling Frequency Fsam Samples Sec Plot The Spectrum G W F 1 (21.21 KiB) Viewed 49 times

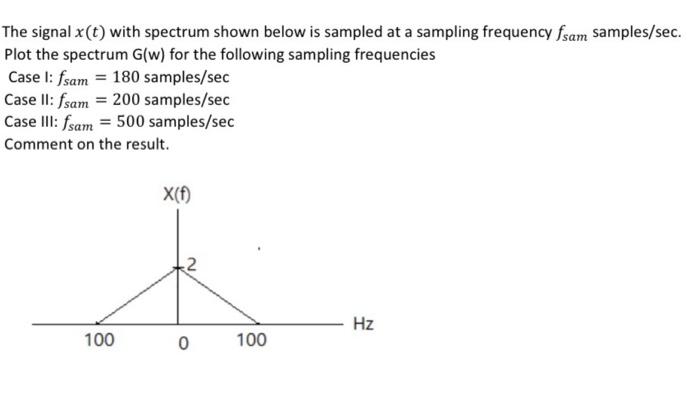

The signal x (t) with spectrum shown below is sampled at a sampling frequency fsam samples/sec. Plot the spectrum G(w) for the following sampling frequencies Case 1: fsam = 180 samples/sec Case II: fsam = 200 samples/sec Case III: fsam = 500 samples/sec Comment on the result. X(f) Hz 0 100 100
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
