4.11. The op amp in Fig. P4.11 is ideal. (a) Find v, if V₁ = 1.2 V, Ub = -1.5 V, and Vc = 4 V. (b) The voltages va and v
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
4.11. The op amp in Fig. P4.11 is ideal. (a) Find v, if V₁ = 1.2 V, Ub = -1.5 V, and Vc = 4 V. (b) The voltages va and v

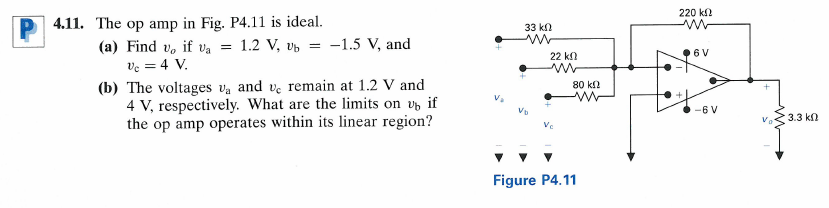

4.11. The op amp in Fig. P4.11 is ideal. (a) Find v, if V₁ = 1.2 V, Ub = -1.5 V, and Vc = 4 V. (b) The voltages va and ve remain at 1.2 V and 4 V, respectively. What are the limits on v if the op amp operates within its linear region? 33 ΚΩ ww 22 ΚΩ 80 ΚΩ V₂ Figure P4.11 220 ΚΩ 6V -6 V + V₂ 2.3.3 ΚΩ
