QUESTION 2 (a) For the circuit shown in Figure Q2(a), use the Thevenin technique to determine equivalent circuit in betw

[answerhappygod]

Question 2 A For The Circuit Shown In Figure Q2 A Use The Thevenin Technique To Determine Equivalent Circuit In Betw 1 (53.71 KiB) Viewed 65 times

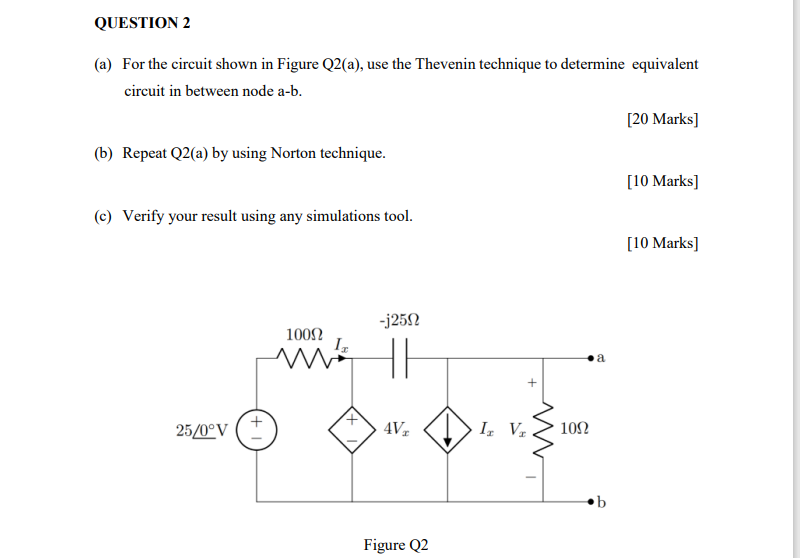

QUESTION 2 (a) For the circuit shown in Figure Q2(a), use the Thevenin technique to determine equivalent circuit in between node a-b. [20 Marks] (b) Repeat Q2(a) by using Norton technique. [10 Marks] (c) Verify your result using any simulations tool. [10 Marks] -j250 100Ω Iz m 25/0°V 4V₂ Iz Vz 109 On Dezs Figure Q2 (+1 a b
