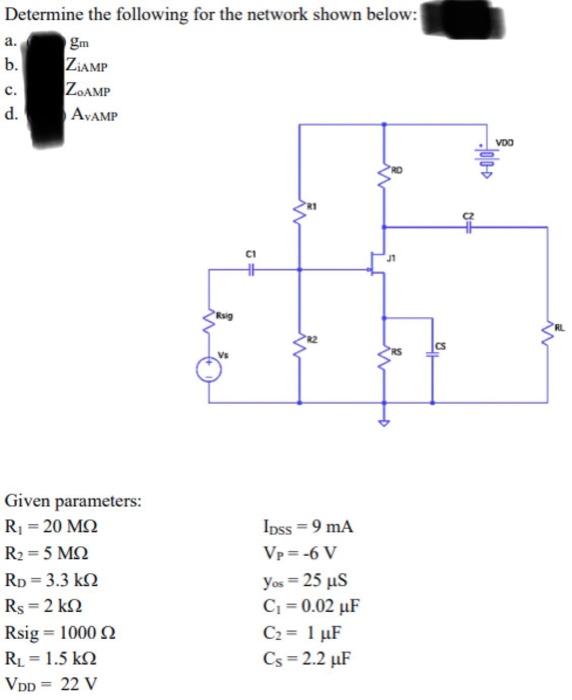

Determine the following for the network shown below: a. gm ZIAMP b. C. ZOAMP d. Given parameters: R1 = 20 ΜΩ R2 = 5 ΜΩ R
-
