- 1 The Following Measurements Were Made On A Resistive Two Port Network That Is Symmetric And Reciprocal With Port 2 Op 1 (17.98 KiB) Viewed 51 times
1. The following measurements were made on a resistive two-port network that is symmetric and reciprocal. With port 2 op
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
1. The following measurements were made on a resistive two-port network that is symmetric and reciprocal. With port 2 op

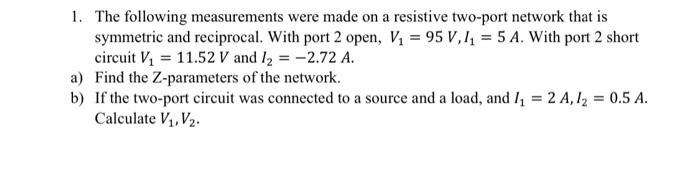

1. The following measurements were made on a resistive two-port network that is symmetric and reciprocal. With port 2 open, V₁ = 95 V, I₁ = 5 A. With port 2 short circuit V₁ = 11.52 V and 1₂ = -2.72 A. a) Find the Z-parameters of the network. b) If the two-port circuit was connected to a source and a load, and I₁ = 2 A, 1₂ = 0.5 A. Calculate V₁, V₂.
