For the cct. shown, Find:- (a) The circuit current. (b) VR & Ve Vs=15√2 Sin (c) The total power consumed. (d) The instan

Post by answerhappygod »

For The Cct Shown Find A The Circuit Current B Vr Ve Vs 15 2 Sin C The Total Power Consumed D The Instan 1
For The Cct Shown Find A The Circuit Current B Vr Ve Vs 15 2 Sin C The Total Power Consumed D The Instan 1 (17.72 KiB) Viewed 62 times

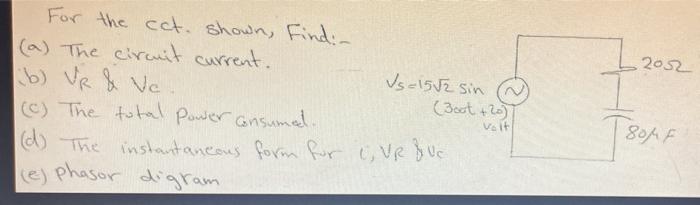

For the cct. shown, Find:- (a) The circuit current. (b) VR & Ve Vs=15√2 Sin (c) The total power consumed. (d) The instantaneous form for c, VR BUC (e) phasor digram. (3oot +20) voit 2052 80M F
