Q4 (25 pts). Complete the following circuit diagram to implement a register which will operate according to the followin

Post by answerhappygod »

Q4 25 Pts Complete The Following Circuit Diagram To Implement A Register Which Will Operate According To The Followin 1
Q4 25 Pts Complete The Following Circuit Diagram To Implement A Register Which Will Operate According To The Followin 1 (20.28 KiB) Viewed 67 times

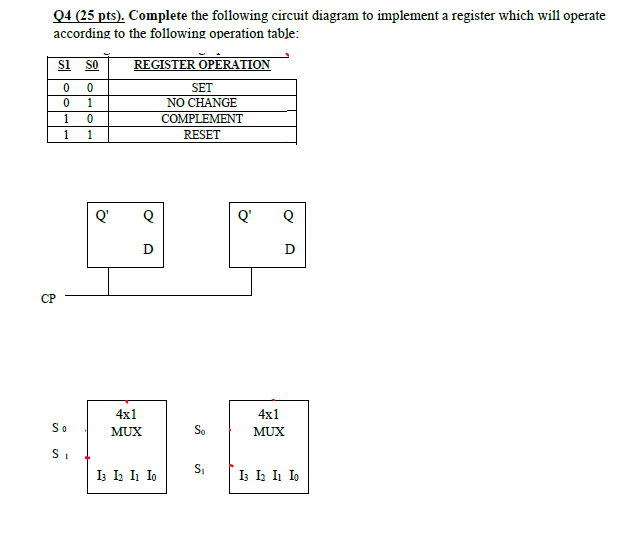

Q4 (25 pts). Complete the following circuit diagram to implement a register which will operate according to the following operation table: $1 SO REGISTER OPERATION 0 0 SET NO CHANGE COMPLEMENT RESET CP 0 1 1 So SI 1 0 1 Q' Q D 4x1 MUX 13 1₂ 11 Io S₁ Q D 4x1 MUX 13 12 11 Io
