Given C = 0.1 mF. R₁ = 500 Ohms, R₂ = 154 Ohms, and L = 1 H in Fig. P6.38, compute the voltage across the capacitor, Vc.

Post by answerhappygod »

Given C 0 1 Mf R 500 Ohms R 154 Ohms And L 1 H In Fig P6 38 Compute The Voltage Across The Capacitor Vc 1
Given C 0 1 Mf R 500 Ohms R 154 Ohms And L 1 H In Fig P6 38 Compute The Voltage Across The Capacitor Vc 1 (44.9 KiB) Viewed 51 times

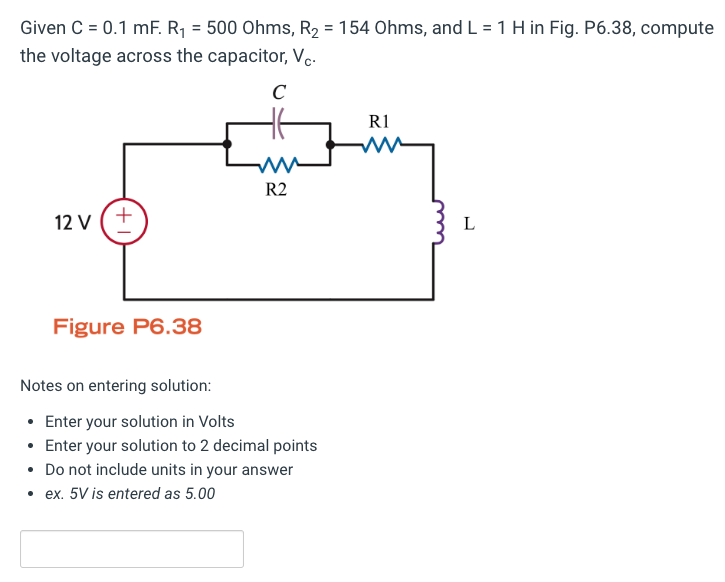

Given C = 0.1 mF. R₁ = 500 Ohms, R₂ = 154 Ohms, and L = 1 H in Fig. P6.38, compute the voltage across the capacitor, Vc. C R1 www R2 12 V Figure P6.38 Notes on entering solution: • Enter your solution in Volts • Enter your solution to 2 decimal points • Do not include units in your answer • ex. 5V is entered as 5.00 (+1 w L
