Using V = 13 mV, and given the voltage across an inductor L = 8 mH as shown in Fig. P6.25, determine the equation of cur

[answerhappygod]

Using V 13 Mv And Given The Voltage Across An Inductor L 8 Mh As Shown In Fig P6 25 Determine The Equation Of Cur 1 (66.34 KiB) Viewed 57 times

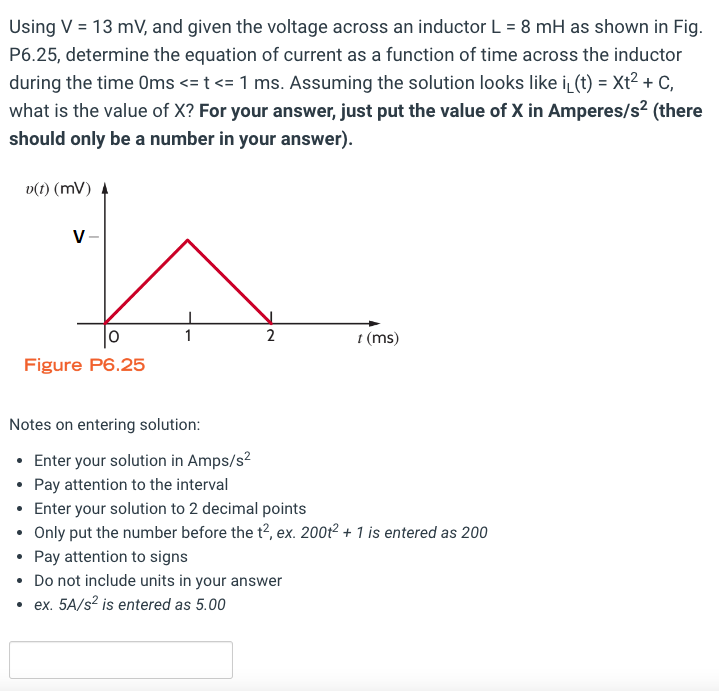

Using V = 13 mV, and given the voltage across an inductor L = 8 mH as shown in Fig. P6.25, determine the equation of current as a function of time across the inductor during the time Oms <= t <= 1 ms. Assuming the solution looks like i(t) = Xt² + C, what is the value of X? For your answer, just put the value of X in Amperes/s² (there should only be a number in your answer). v(t) (mv) V- 0 1 2 t (ms) Figure P6.25 Notes on entering solution: Enter your solution in Amps/s² • Pay attention to the interval • Enter your solution to 2 decimal points • Only put the number before the t², ex. 200t² + 1 is entered as 200 Pay attention to signs • Do not include units in your answer • ex. 5A/s² is entered as 5.00
