Given a capacitor of C = 18 µF, calculate the current going through the capacitor when the capacitor voltage is as descr

[answerhappygod]

Given A Capacitor Of C 18 Uf Calculate The Current Going Through The Capacitor When The Capacitor Voltage Is As Descr 1 (66.63 KiB) Viewed 54 times

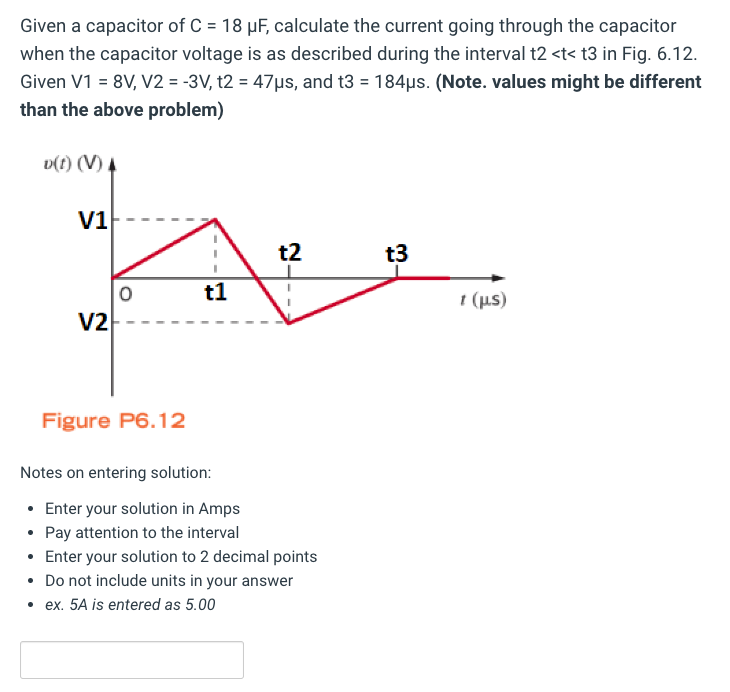

Given a capacitor of C = 18 µF, calculate the current going through the capacitor when the capacitor voltage is as described during the interval t2 <t< t3 in Fig. 6.12. Given V1 = 8V, V2 = -3V, t2 = 47μs, and t3 = 184µs. (Note. values might be different than the above problem) D(t) (V) A V1 t2 t3 t1 1 (µs) V2 Figure P6.12 Notes on entering solution: • Enter your solution in Amps • Pay attention to the interval • Enter your solution to 2 decimal points • Do not include units in your answer • ex. 5A is entered as 5.00
