Given a capacitor of C = 2 µF, calculate the current going through the capacitor when the capacitor voltage is as descri

[answerhappygod]

Given A Capacitor Of C 2 Uf Calculate The Current Going Through The Capacitor When The Capacitor Voltage Is As Descri 1 (68.21 KiB) Viewed 54 times

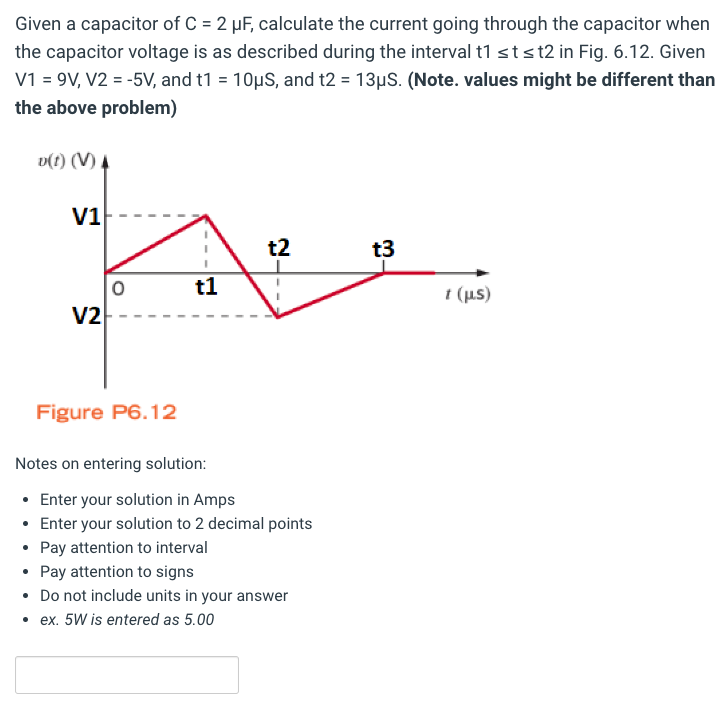

Given a capacitor of C = 2 µF, calculate the current going through the capacitor when the capacitor voltage is as described during the interval t1 st st2 in Fig. 6.12. Given V1 = 9V, V2 = -5V, and t1 = 10µS, and t2 = 13µS. (Note. values might be different than the above problem) v(1) (V) A V1 t2 t3 t (µs) V2 Figure P6.12 Notes on entering solution: • Enter your solution in Amps • Enter your solution to 2 decimal points • Pay attention to interval Pay attention to signs • Do not include units in your answer • ex. 5W is entered as 5.00 0 t1
