Given: The following RLC circuit R L momo R R Vin Questions: (a) Find the transfer function from Vin to Vout. Choose R 1

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Given: The following RLC circuit R L momo R R Vin Questions: (a) Find the transfer function from Vin to Vout. Choose R 1

Post by answerhappygod »

Given The Following Rlc Circuit R L Momo R R Vin Questions A Find The Transfer Function From Vin To Vout Choose R 1 1
Given The Following Rlc Circuit R L Momo R R Vin Questions A Find The Transfer Function From Vin To Vout Choose R 1 1 (85.77 KiB) Viewed 48 times

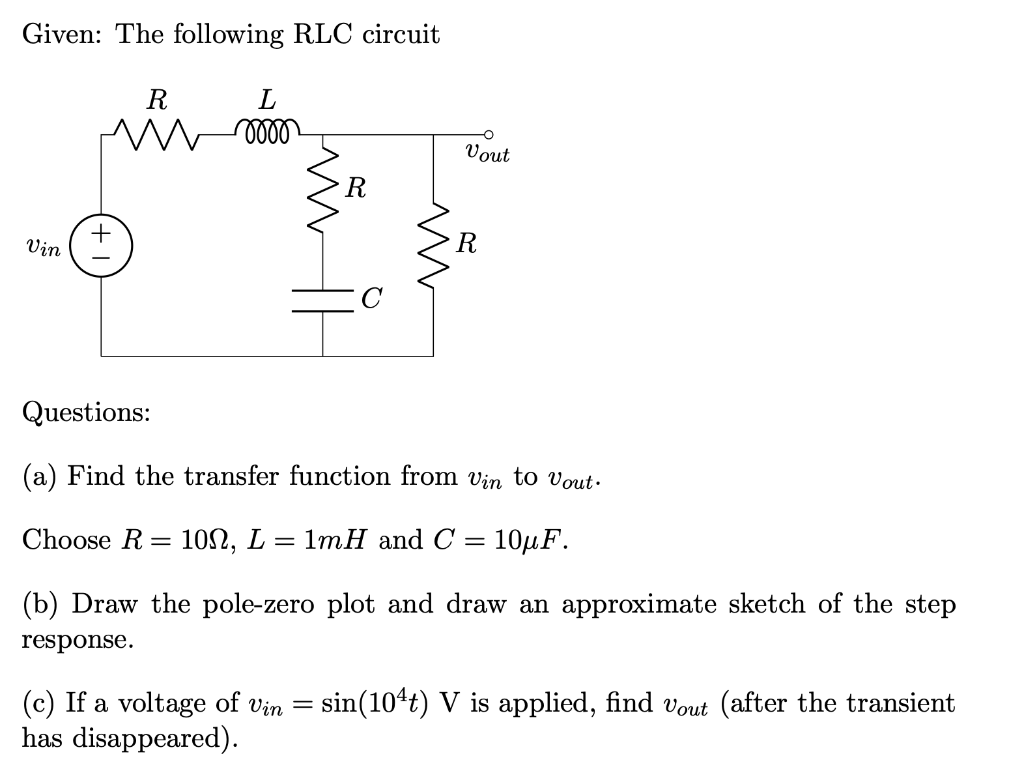

Given: The following RLC circuit R L momo R R Vin Questions: (a) Find the transfer function from Vin to Vout. Choose R 109, L 1mH and C 10μF. (b) Draw the pole-zero plot and draw an approximate sketch of the step response. = sin(10¹) V is applied, find vout (after the transient (c) If a voltage of Vin has disappeared). Vout
