Design a synchronous counter Flip-Flops that has the following state diagram in decimal number 13 12 0 8 6 10 a) Using D

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Design a synchronous counter Flip-Flops that has the following state diagram in decimal number 13 12 0 8 6 10 a) Using D

Post by answerhappygod »

Design A Synchronous Counter Flip Flops That Has The Following State Diagram In Decimal Number 13 12 0 8 6 10 A Using D 1
Design A Synchronous Counter Flip Flops That Has The Following State Diagram In Decimal Number 13 12 0 8 6 10 A Using D 1 (69.93 KiB) Viewed 47 times

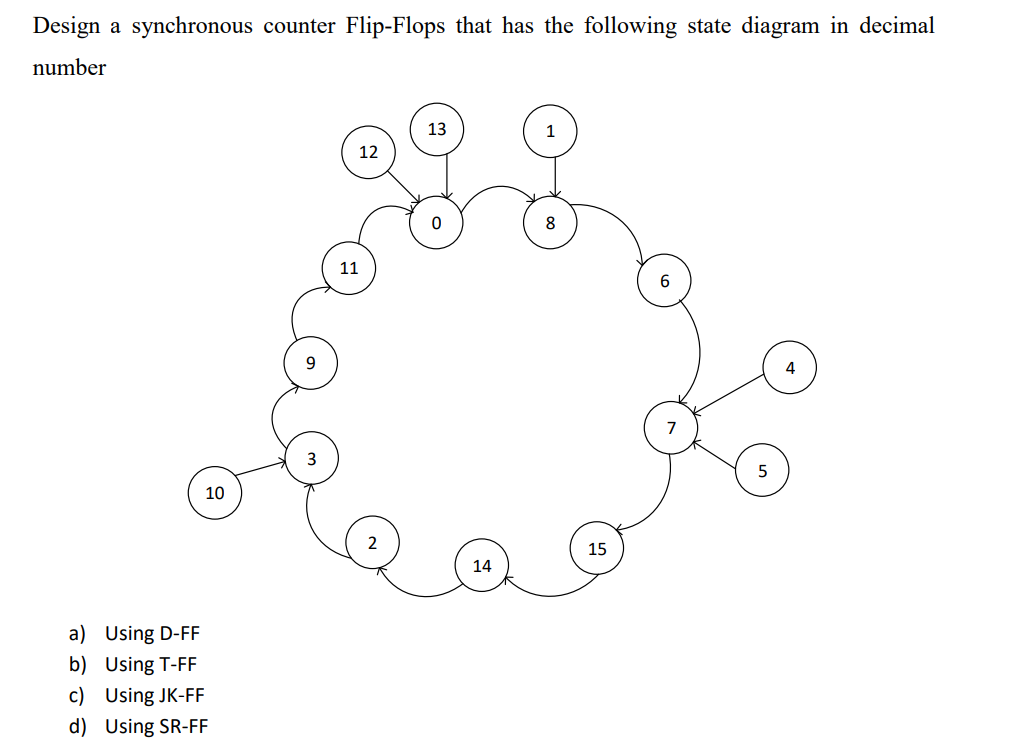

Design a synchronous counter Flip-Flops that has the following state diagram in decimal number 13 12 0 8 6 10 a) Using D-FF b) Using T-FF c) Using JK-FF d) Using SR-FF 9 11 2 14 15 5 4
