b) At Islington substation, three transformers connect the 220kV busbar to the 66kV busbar. Each transformer is continuo

Post by answerhappygod »

B At Islington Substation Three Transformers Connect The 220kv Busbar To The 66kv Busbar Each Transformer Is Continuo 1
B At Islington Substation Three Transformers Connect The 220kv Busbar To The 66kv Busbar Each Transformer Is Continuo 1 (59.37 KiB) Viewed 47 times

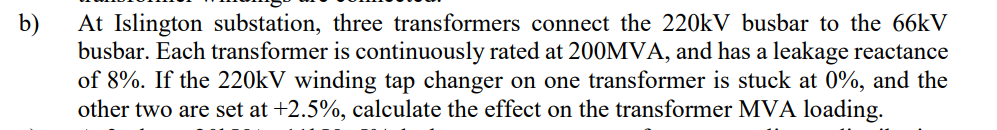

b) At Islington substation, three transformers connect the 220kV busbar to the 66kV busbar. Each transformer is continuously rated at 200MVA, and has a leakage reactance of 8%. If the 220kV winding tap changer on one transformer is stuck at 0%, and the other two are set at +2.5%, calculate the effect on the transformer MVA loading.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
