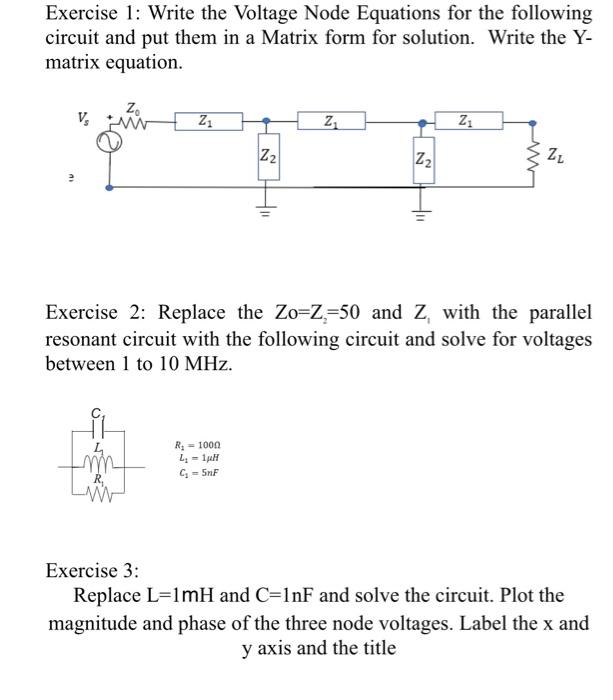

Exercise 1: Write the Voltage Node Equations for the following circuit and put them in a Matrix form for solution. Write

[answerhappygod]

Exercise 1 Write The Voltage Node Equations For The Following Circuit And Put Them In A Matrix Form For Solution Write 1 (43.81 KiB) Viewed 22 times

Exercise 1: Write the Voltage Node Equations for the following circuit and put them in a Matrix form for solution. Write the Y- matrix equation. Zo Z₁ Z₁ Z₁ Z2 ZL Z₂ Exercise 2: Replace the Zo=Z-50 and Z₁ with the parallel resonant circuit with the following circuit and solve for voltages between 1 to 10 MHz. R₁ - 1000 L₁1µH C₁=5nF Exercise 3: Replace L=1mH and C=1nF and solve the circuit. Plot the magnitude and phase of the three node voltages. Label the x and y axis and the title N N
