an 741C op amp is configured as a noninverting amplifier, as shown in the figure below. If the ac input amplitude is Vm

Post by answerhappygod »

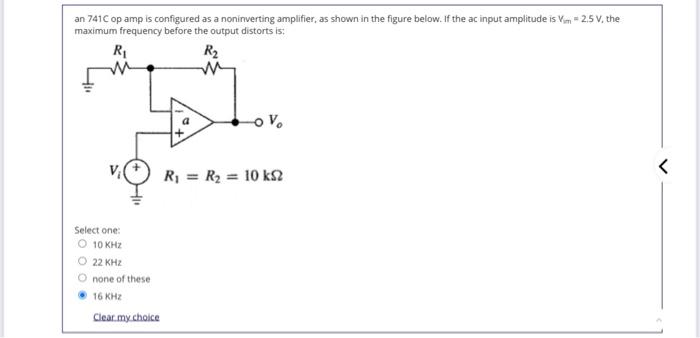

An 741c Op Amp Is Configured As A Noninverting Amplifier As Shown In The Figure Below If The Ac Input Amplitude Is Vm 1
An 741c Op Amp Is Configured As A Noninverting Amplifier As Shown In The Figure Below If The Ac Input Amplitude Is Vm 1 (16.09 KiB) Viewed 49 times
an 741C op amp is configured as a noninverting amplifier, as shown in the figure below. If the ac input amplitude is Vm = 2.5 V, the maximum frequency before the output distorts is: R₁ R₂ o%₂ R₁ = R₂ = 10 ks2 Select one: O 10 KHz O 22 kHz none of these. 16 KHz Clear my choice
