c) (4 marks) The plot shows the no-load speed of a motor versus the applied voltage, starting from 0 and increasing to 7

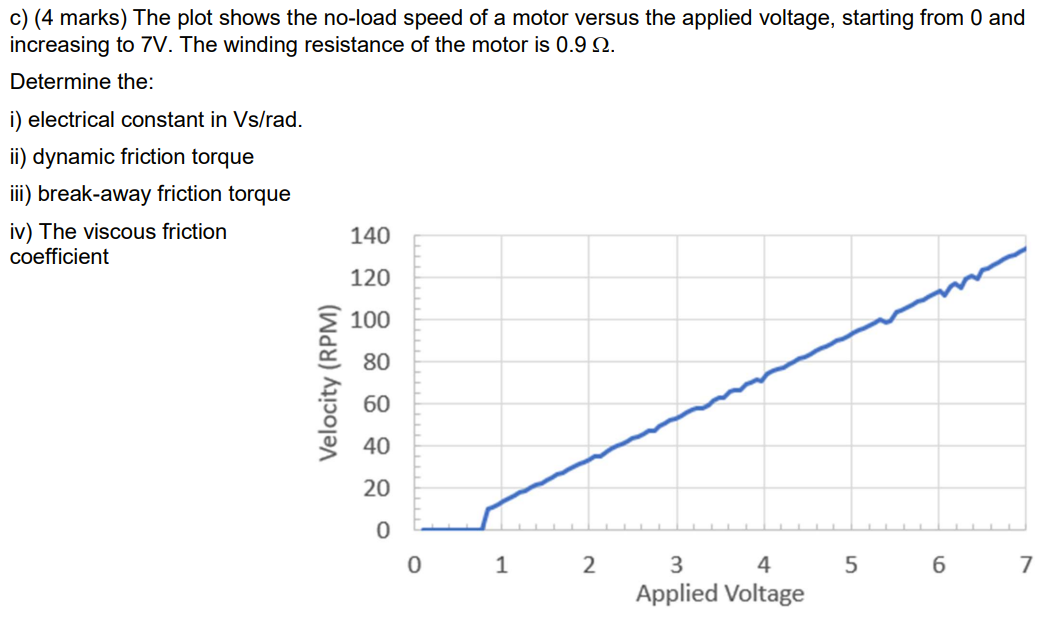

c) (4 marks) The plot shows the no-load speed of a motor versus the applied voltage, starting from 0 and increasing to 7V. The winding resistance of the motor is 0.9 9. Determine the: i) electrical constant in Vs/rad. ii) dynamic friction torque iii) break-away friction torque iv) The viscous friction coefficient 140 120 100 80 60 40 20 3 5 6 7 4 Applied Voltage Velocity (RPM) 0 0 1 2
