QUESTION 3 Given the following function K-map: AB 00 01 11 10 CD 00 1 0 1 0 01 0 0 0 0 11 0 0 0 1 10 1 1 1 0 1. Design t

Post by answerhappygod »

Question 3 Given The Following Function K Map Ab 00 01 11 10 Cd 00 1 0 1 0 01 0 0 0 0 11 0 0 0 1 10 1 1 1 0 1 Design T 1
Question 3 Given The Following Function K Map Ab 00 01 11 10 Cd 00 1 0 1 0 01 0 0 0 0 11 0 0 0 1 10 1 1 1 0 1 Design T 1 (39.97 KiB) Viewed 31 times

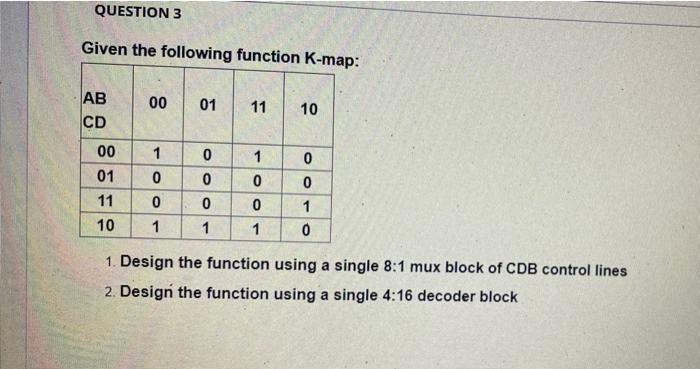

QUESTION 3 Given the following function K-map: AB 00 01 11 10 CD 00 1 0 1 0 01 0 0 0 0 11 0 0 0 1 10 1 1 1 0 1. Design the function using a single 8:1 mux block of CDB control lines 2. Design the function using a single 4:16 decoder block
